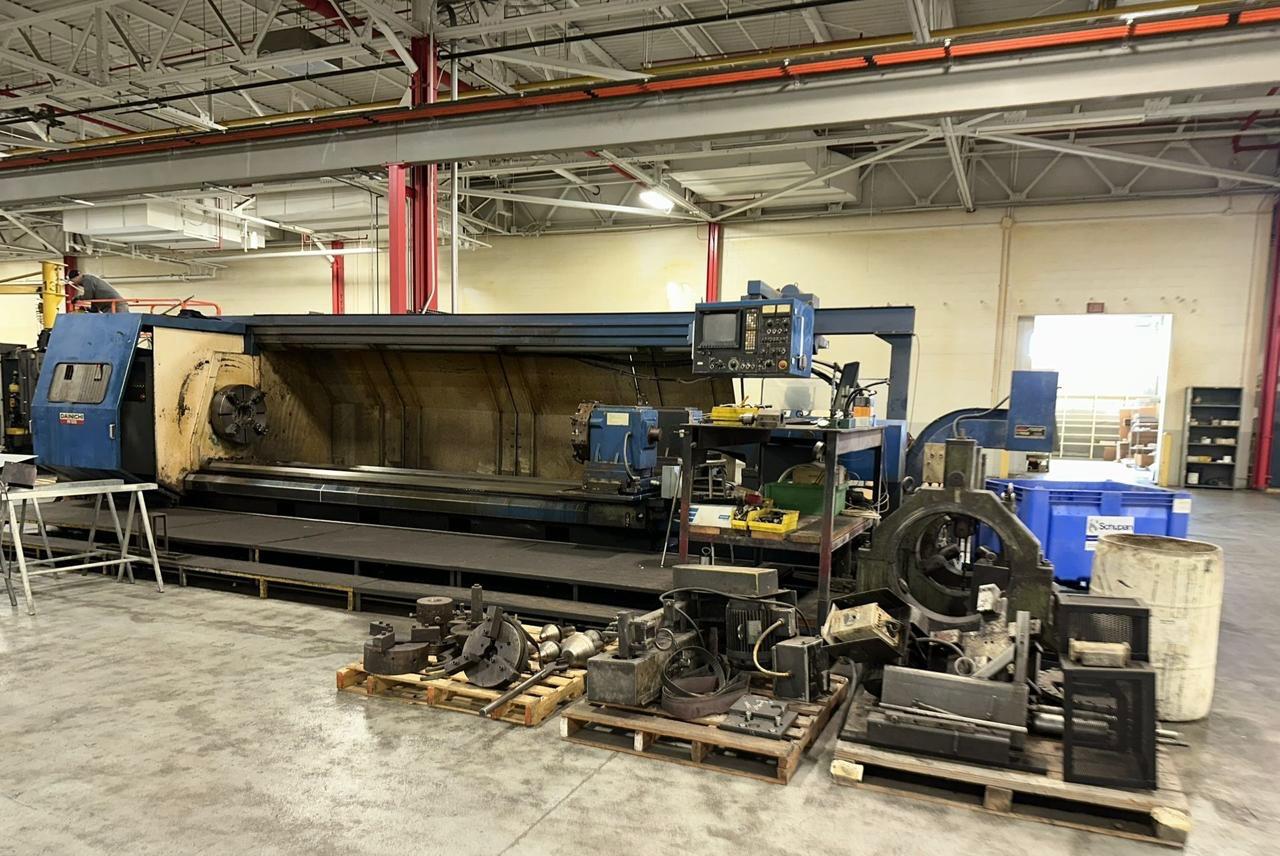

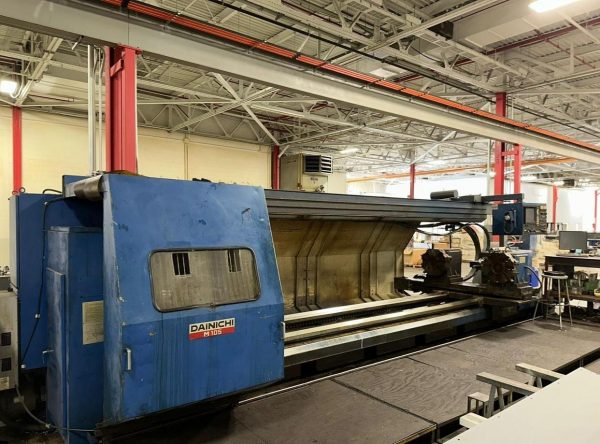

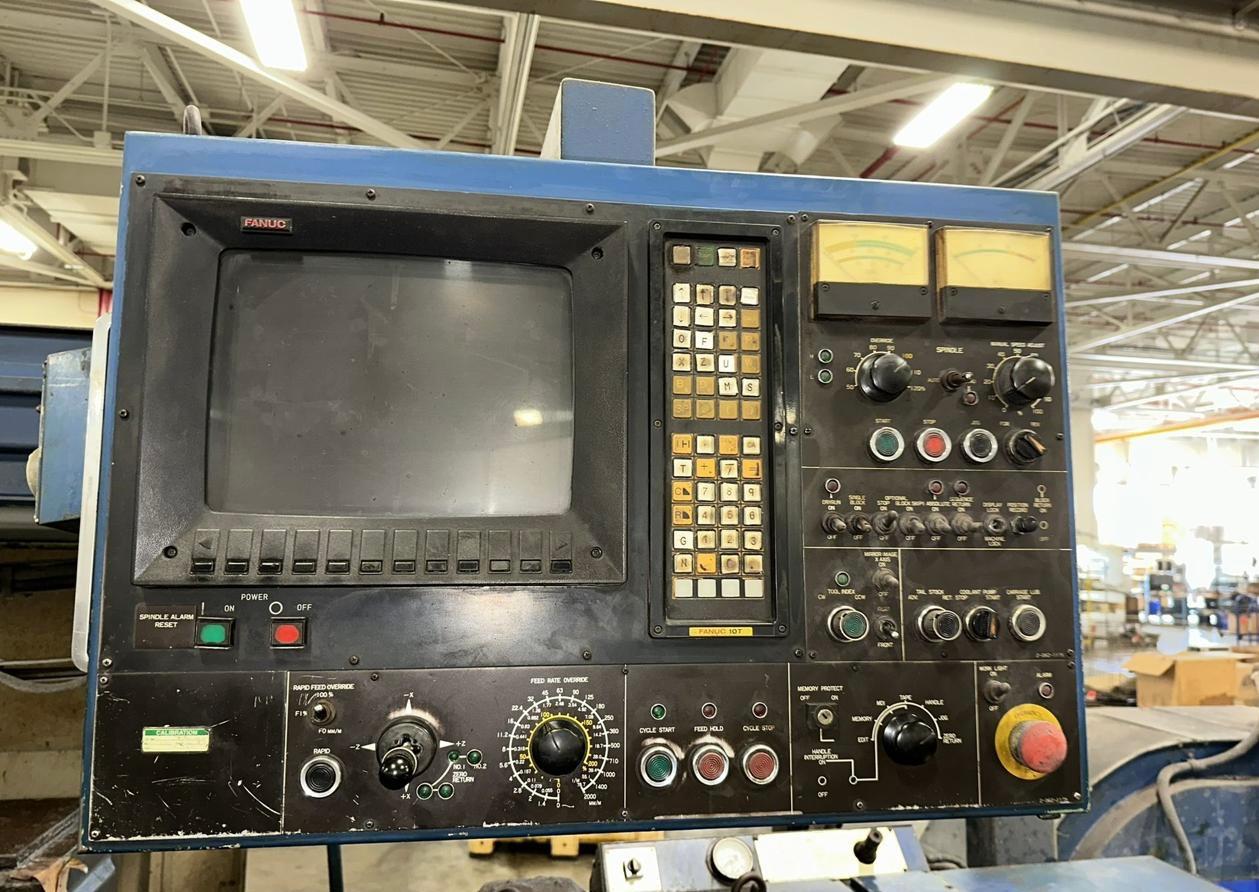

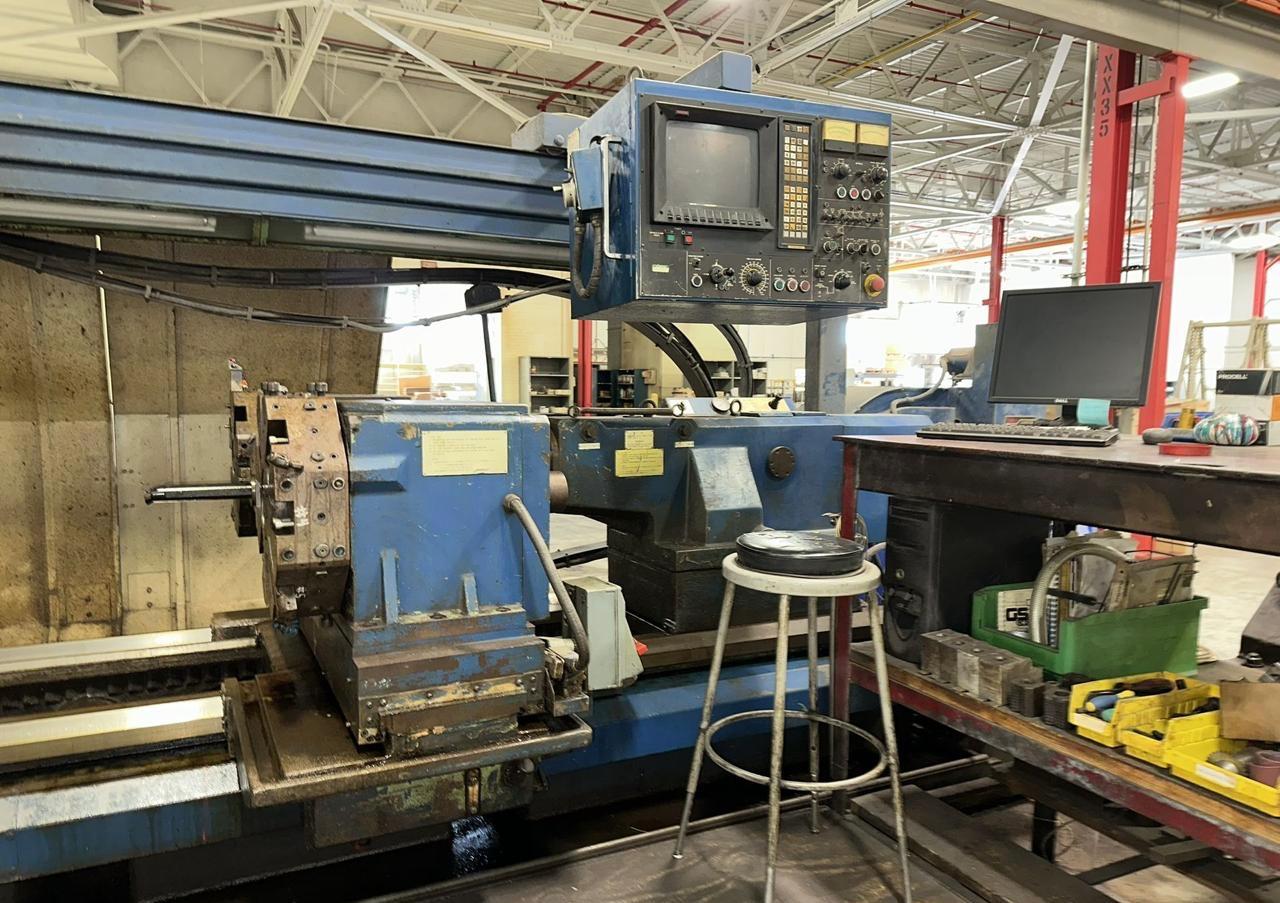

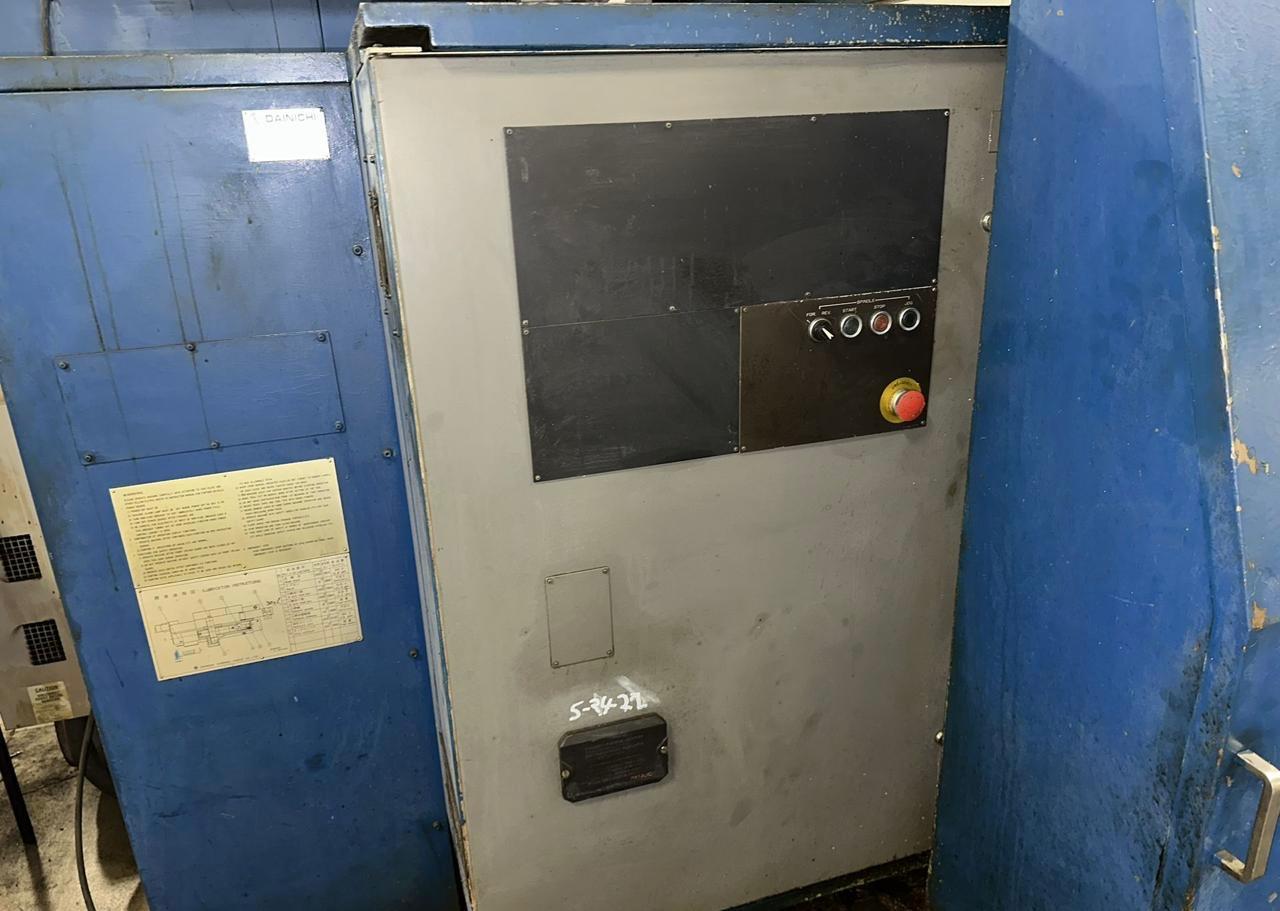

Dainichi M105 CNC Lathe Machine
Description
Dainichi M105 CNC Lathe Machine
CNC Lathe Machine
Specification:
Swing over bed: 1050(41.34″)
Swing over carriage: 680(26.77″)520(20.47″)V8+V8
Distance between centers: 6000
Max/turning length (V8): 1075 1575 2075 2575 3075 4075 5075 6075

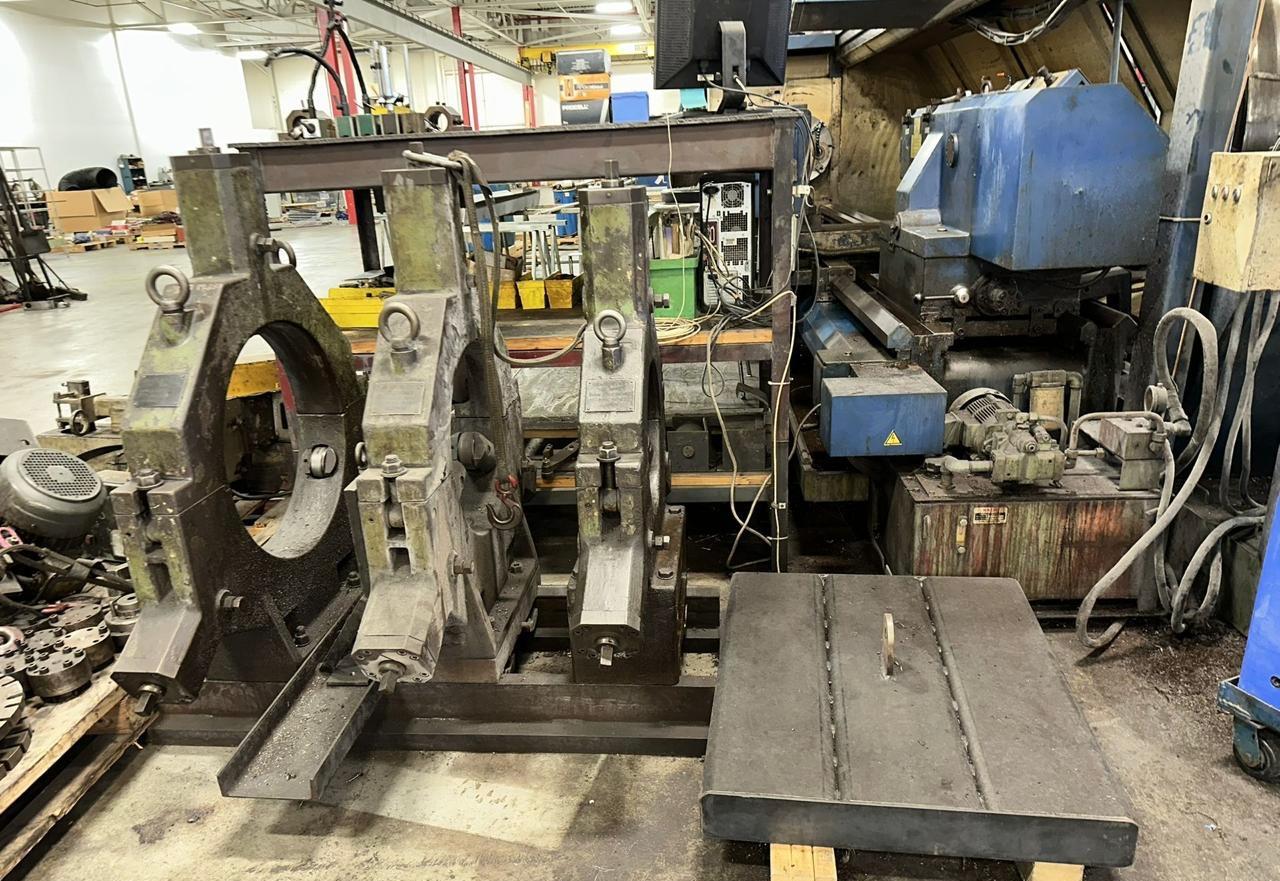

Support capacity center: 6000kg(13300lbs)
Support capacity chuck: 1500kg(3300lbs) include chuck

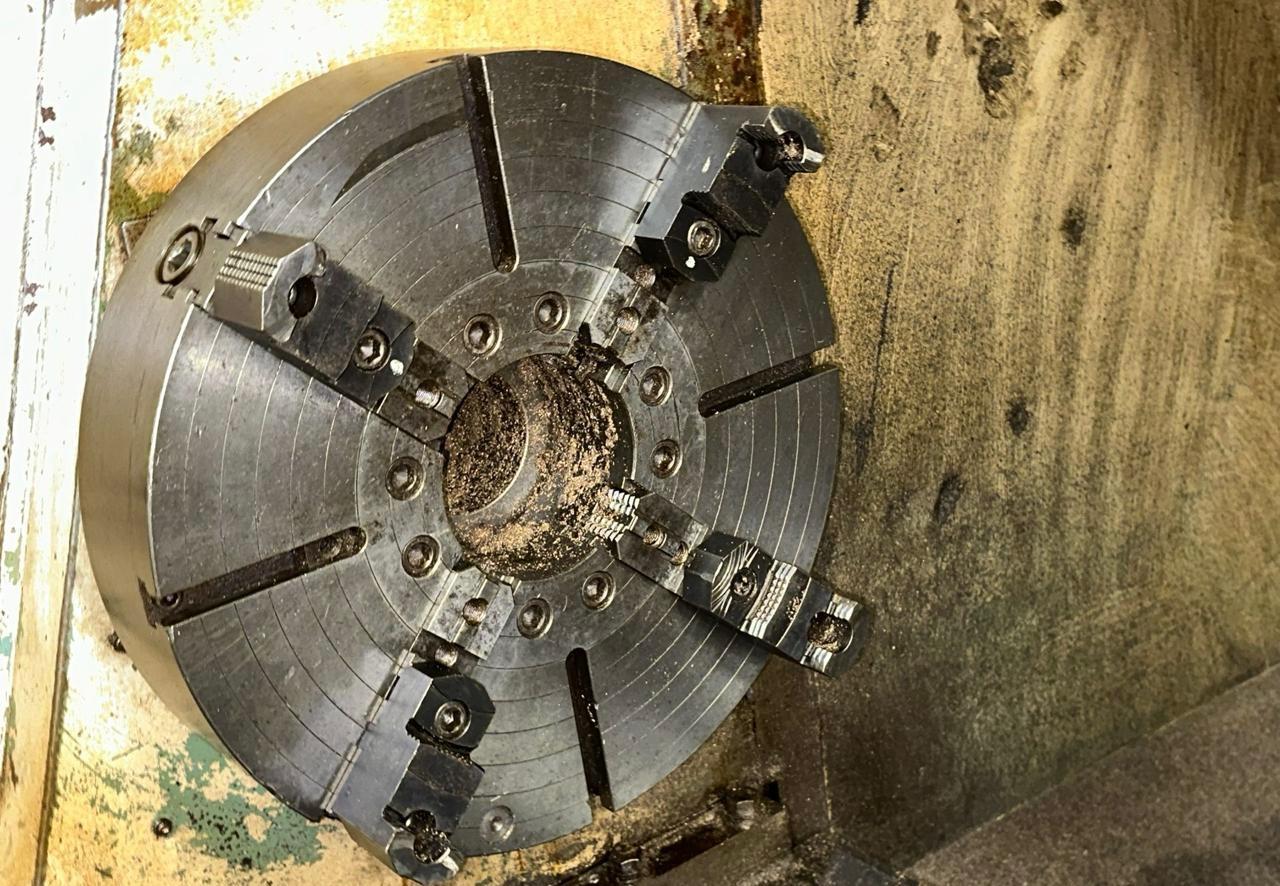

Spindle nose: JIS A1-11/A2-15
Bearing dia.: φ 180(7.09″) / Φ 330(13″)
Diameter hole through spindle: φ105(4.13″) / Φ 240(9.45″)
Taper of main spindle: 1/10 Meter Taper No.120/—

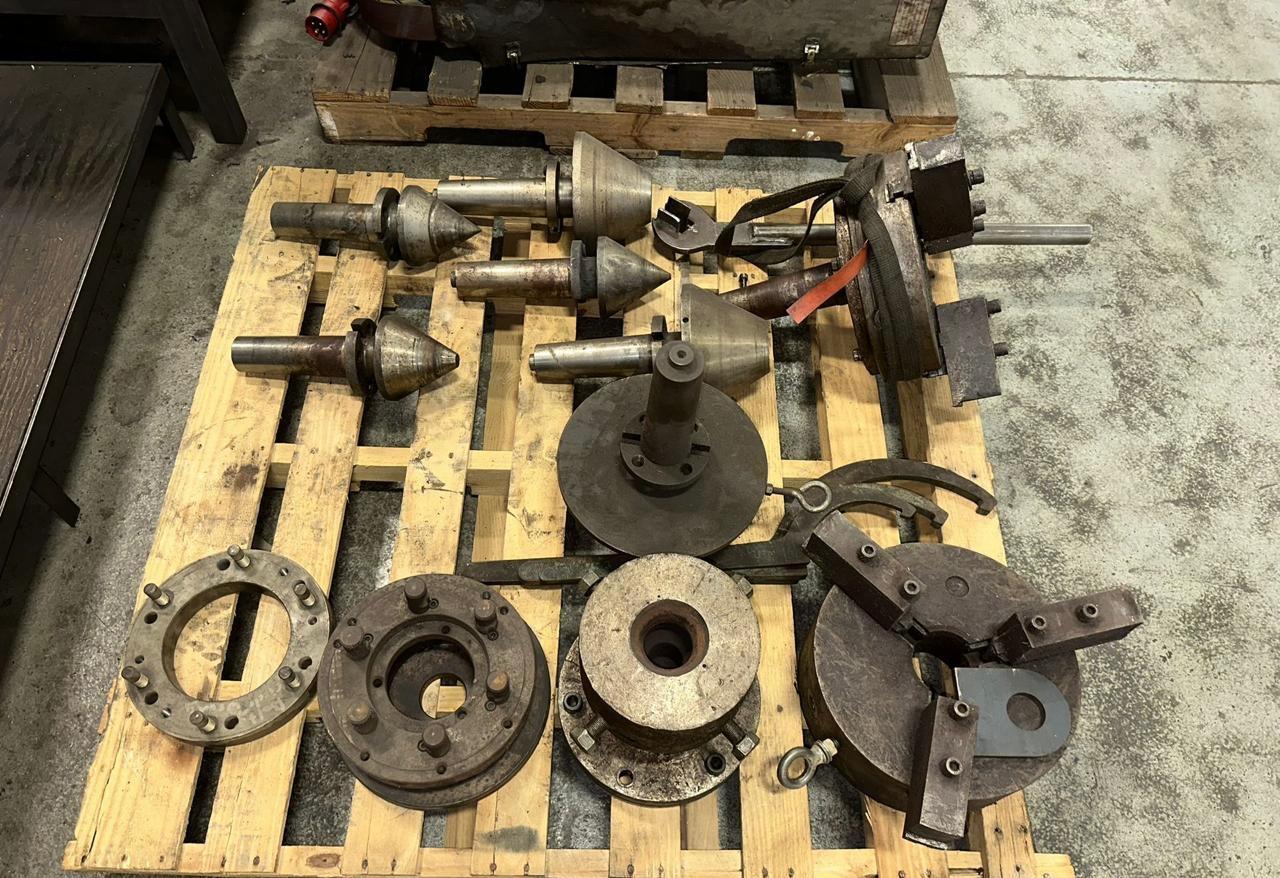

Size of center: M.T.No.6/—
Spindle speed: 2/2groups 4~1200/3~750rpm

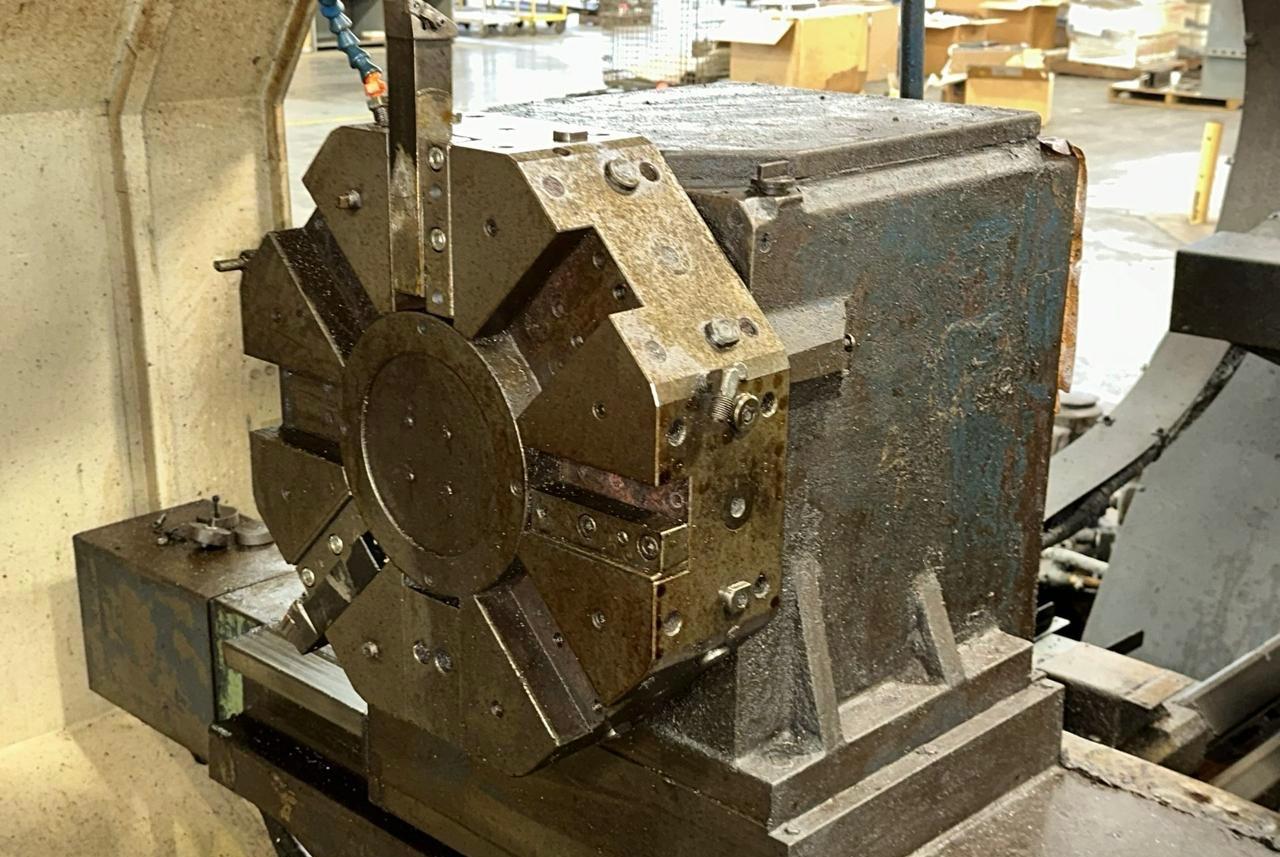

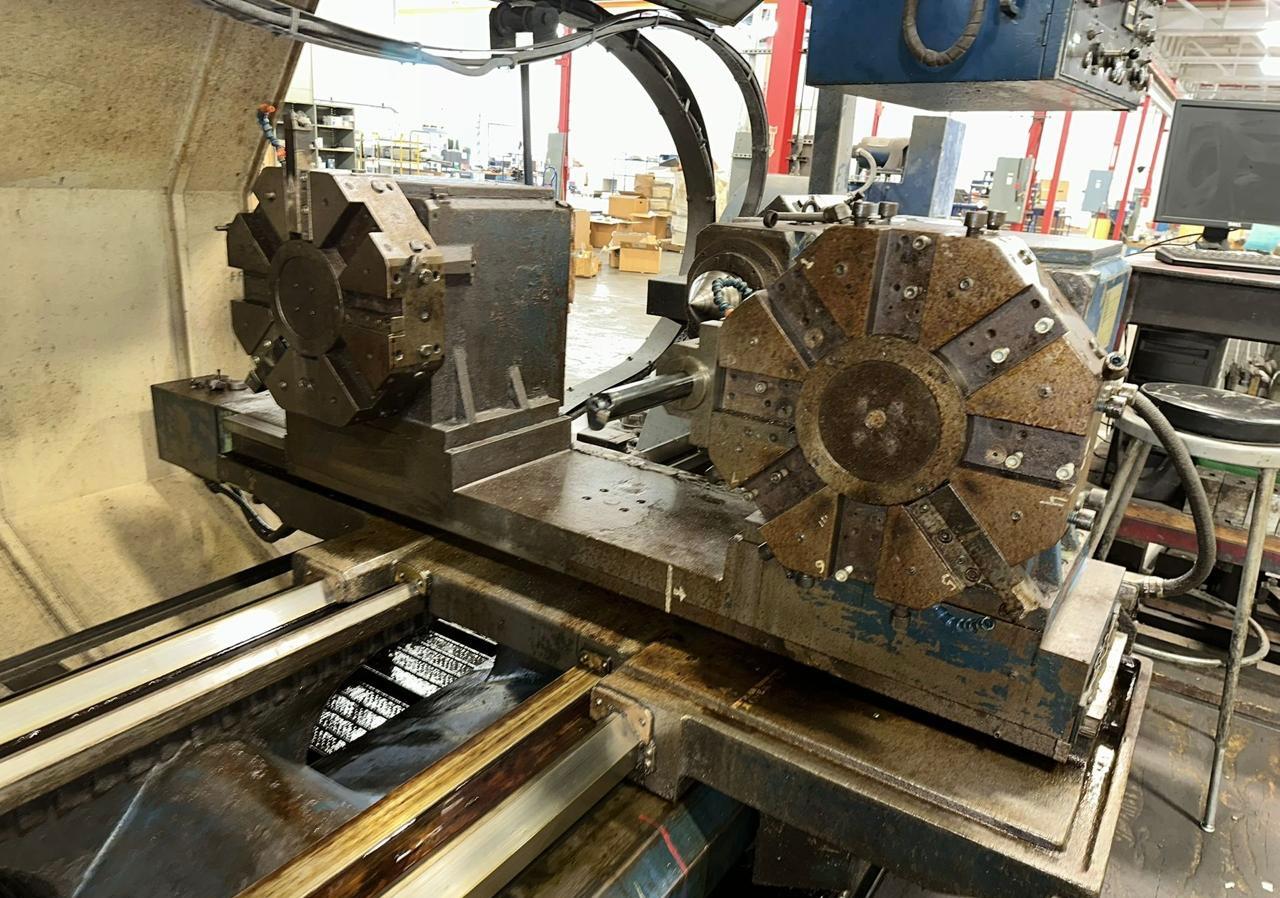

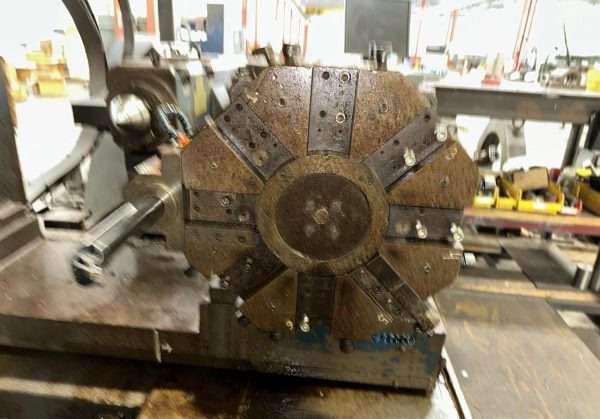

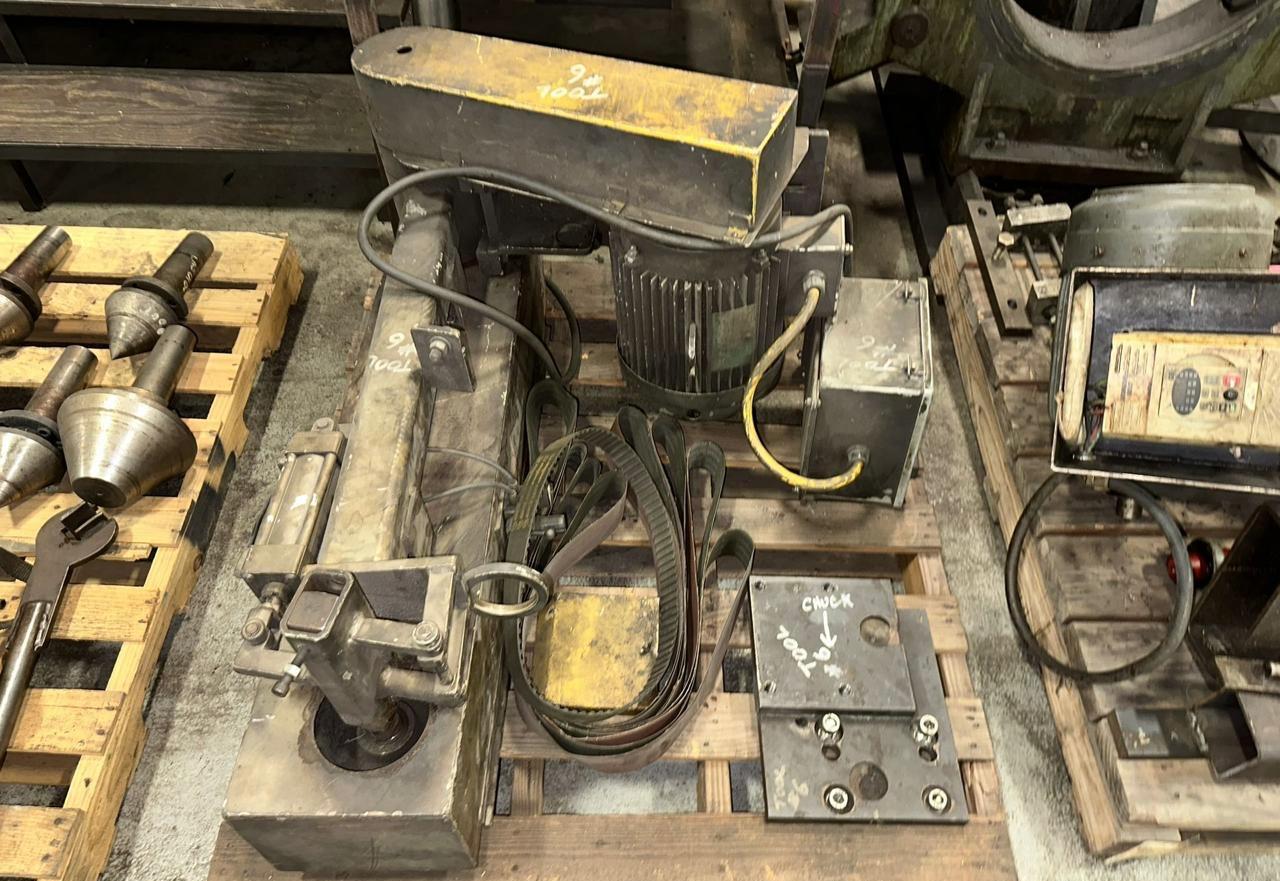

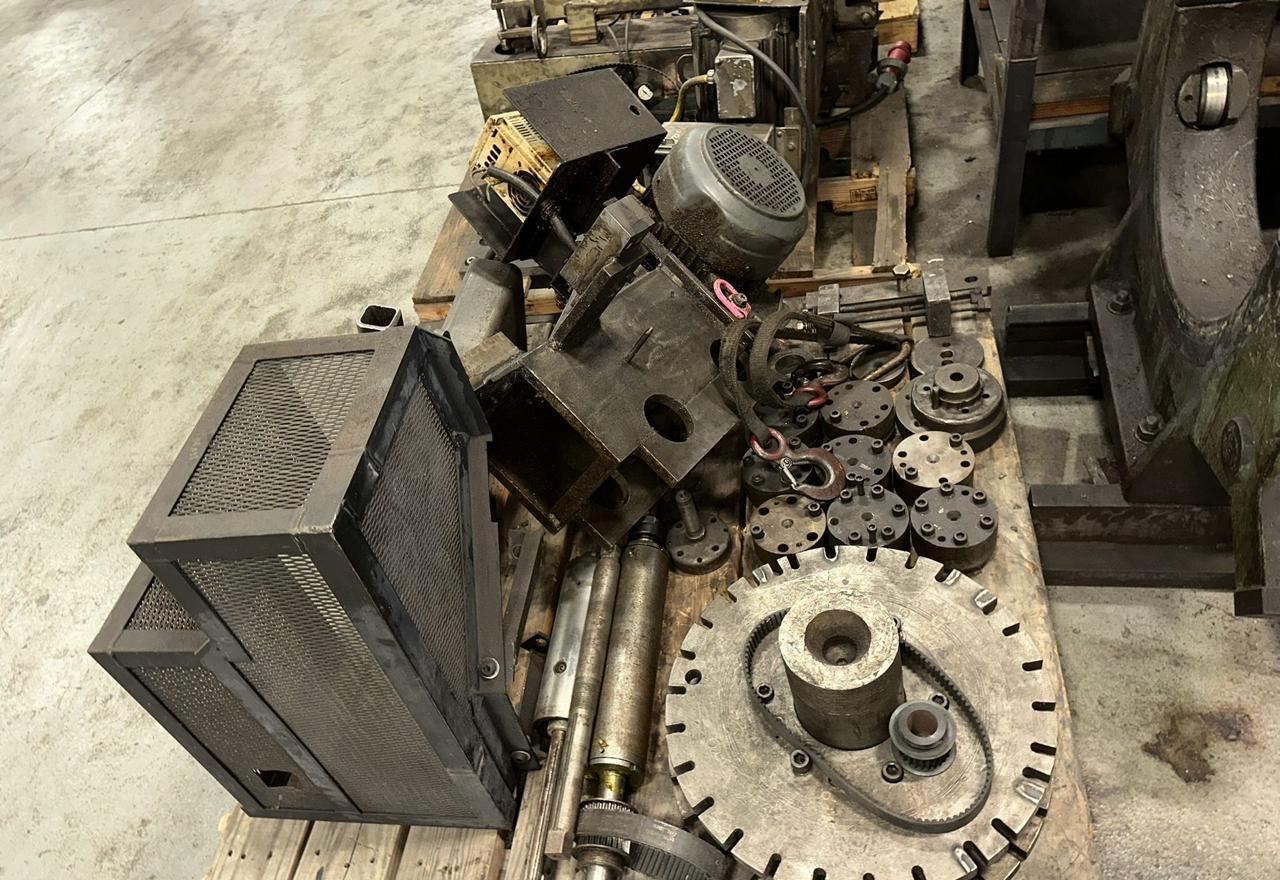

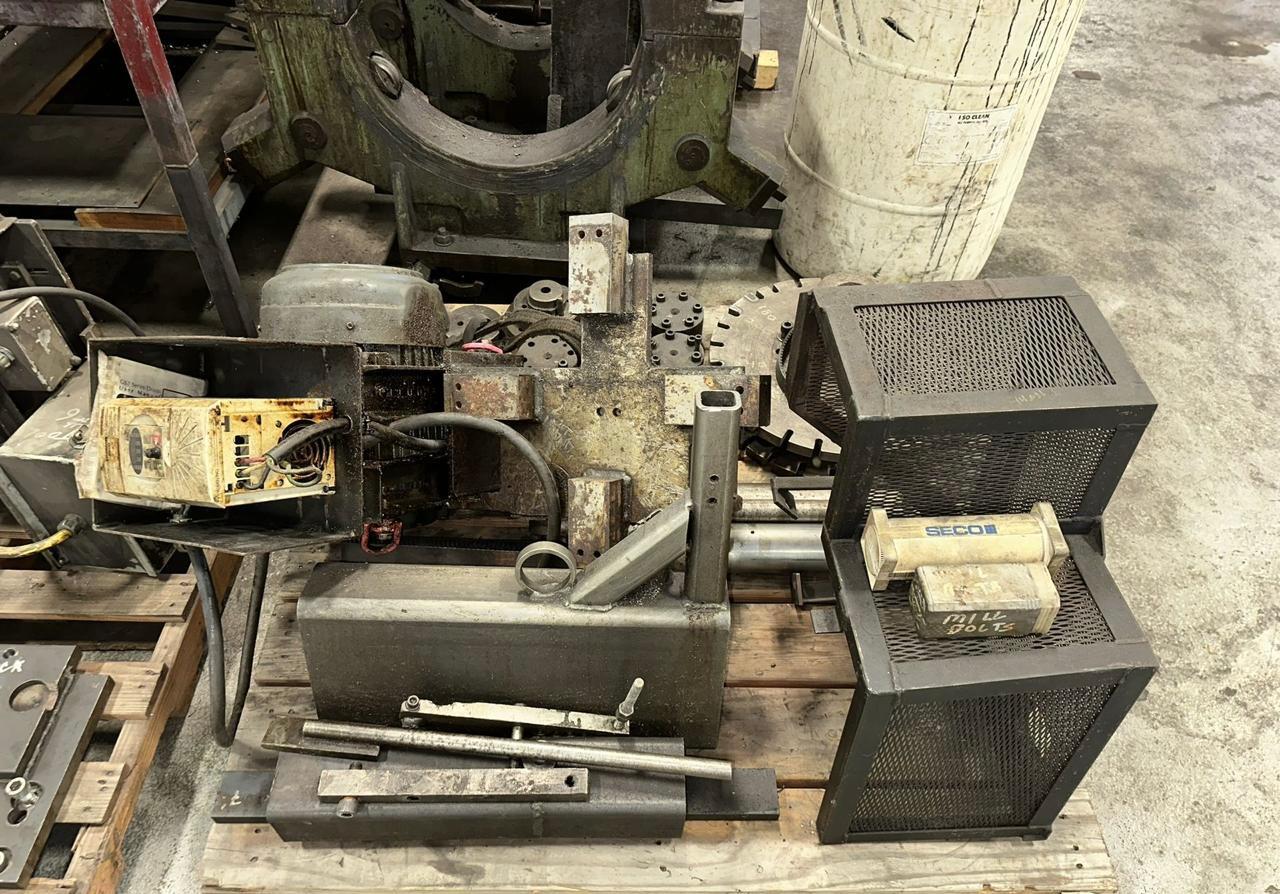

Standard tool post: 8-Sided Vertical Tool Holder V8 (450mm)
Size of tool to be a mounted: 32×32(1 1/4″)
Rapid feed: 6/10(~300),5(~600)m/min
Traverse: 630(24.8) / Same as center distance
Width of cross slide: 380(14.96″)
Cutting speeds: 0.0001~0.0005mm/rev. 0.000001~9.999999in/rev.
(MDI mode): 1~2000mm/min. 0.04~78in/min
Cutting speeds: 22 (Steps) 1~2000mm/min
(JOG mode): 0.04~78in/min
Bed Length: 3500 4000 4500 5000 5500 6500 7500 8500
Bed width X height: 750×735
X axis servo motor: FANUC AC servo 2.1kw
Z axis servo motor: FANUC AC servo 3.0kw
Main drive motor: 45/37kw(50%ED/Cont.) (60/50HP)

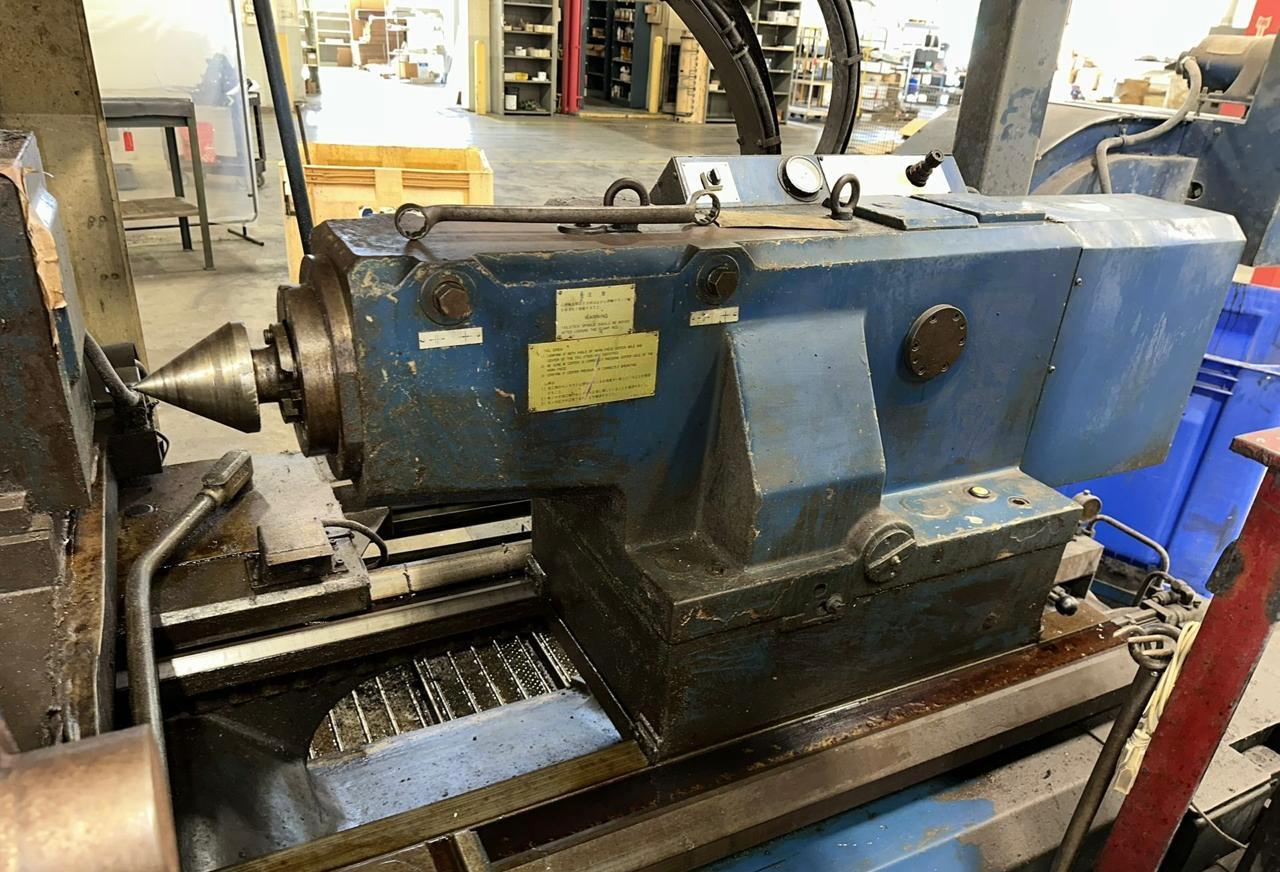

Diameter of tailstock spindle: Φ 200(7.87″)
Center of tailstock spindle: M.T.No.6
Max.travel of tailstock spindle: 180(7.09″)
Thrust load of tailstock spindle: 3000kg(6600lbs)
Machine Weight: 10500(23100) 11000(22000) 11500(25300) 12000(26400) 12500(27500)
13500(29700) 14500(31900) 15500(34100)kg(lbs)
Power source: 67KVA
