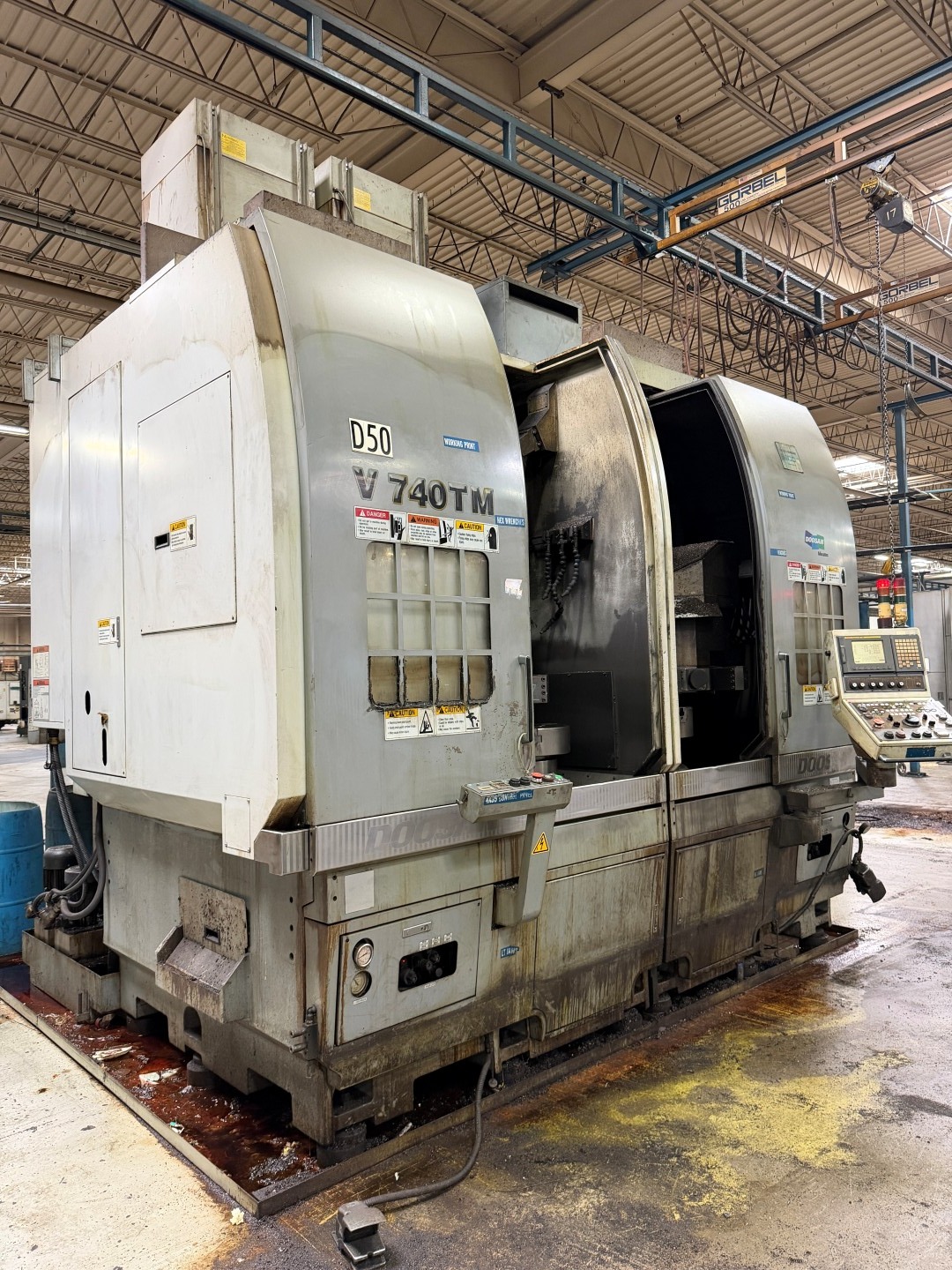

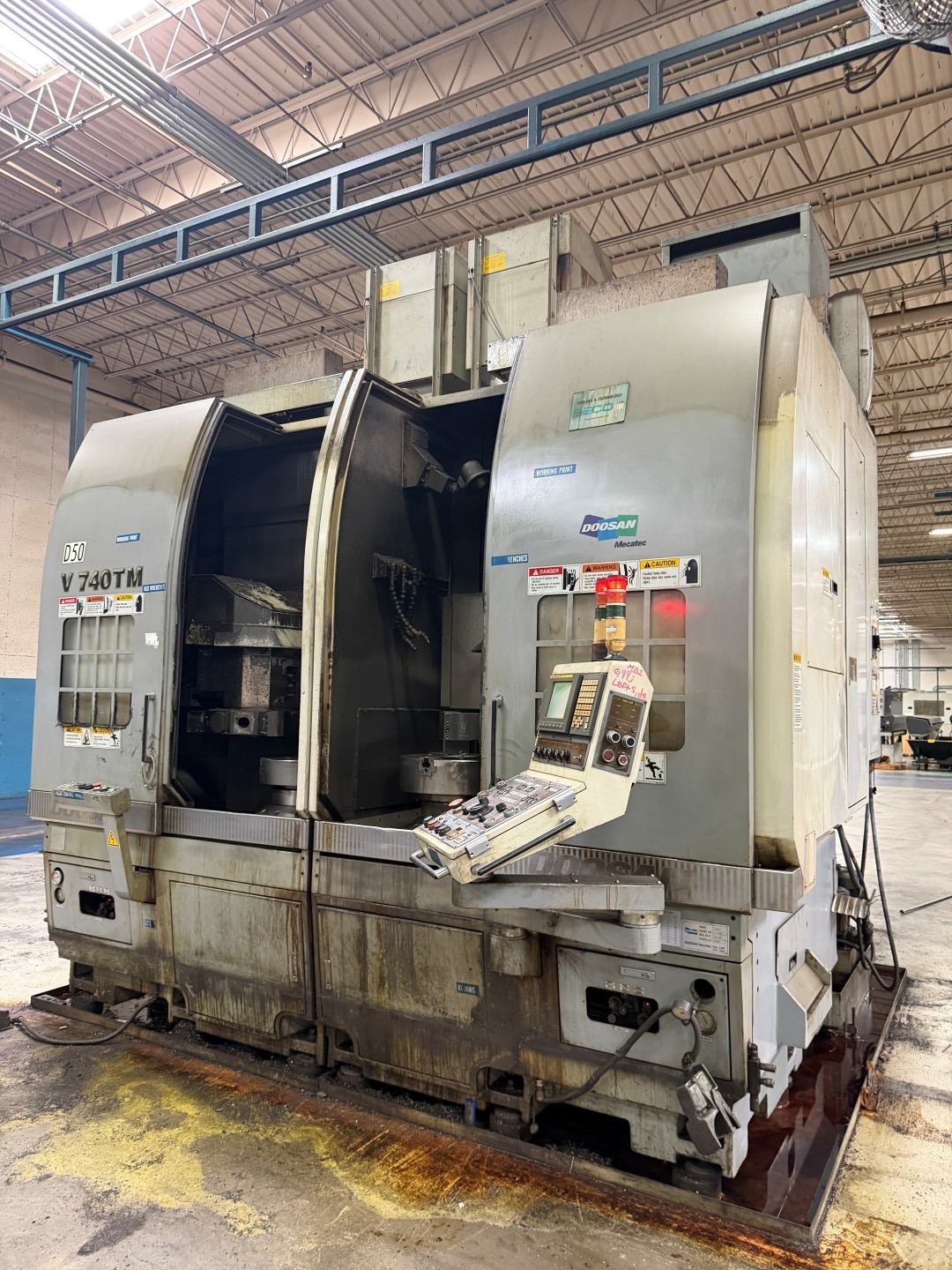

DOOSAN V740TM CNC Twin-Spindle Vertical Turning Center
Description
DOOSAN V740TM CNC TWIN-SPINDLE VERTICAL TURNING CENTER WITH LIVE MILLING
Vertical Turning Center
Specification:
Swing Over Bed — 800 mm (31.50″)
Maximum Turning Diameter — 740 mm (29.13″)
Maximum Turning Length / Height — 760 mm (29.92″)
Spindle Center Height — 1,080.5 mm (42.54″)
Spindle Nose — ASA A2-11
Spindle Hole Taper — 1/20 Taper
Front Bearing Diameter — 160 mm (6.30″)
Spindle Hole Diameter — 77 mm (3.03″)
Spindle Speed — 2,000 RPM (3,000 RPM Optional)
X-Axis Travel — 380 mm (14.96″)
Z-Axis Travel — 760 mm (29.92″)
X-Axis Rapid Traverse — 20 m/min (787 IPM)
Z-Axis Rapid Traverse — 20 m/min (787 IPM)
Feed Range — 0.001–500 mm/rev
Cutting Feed Override — 0–200%

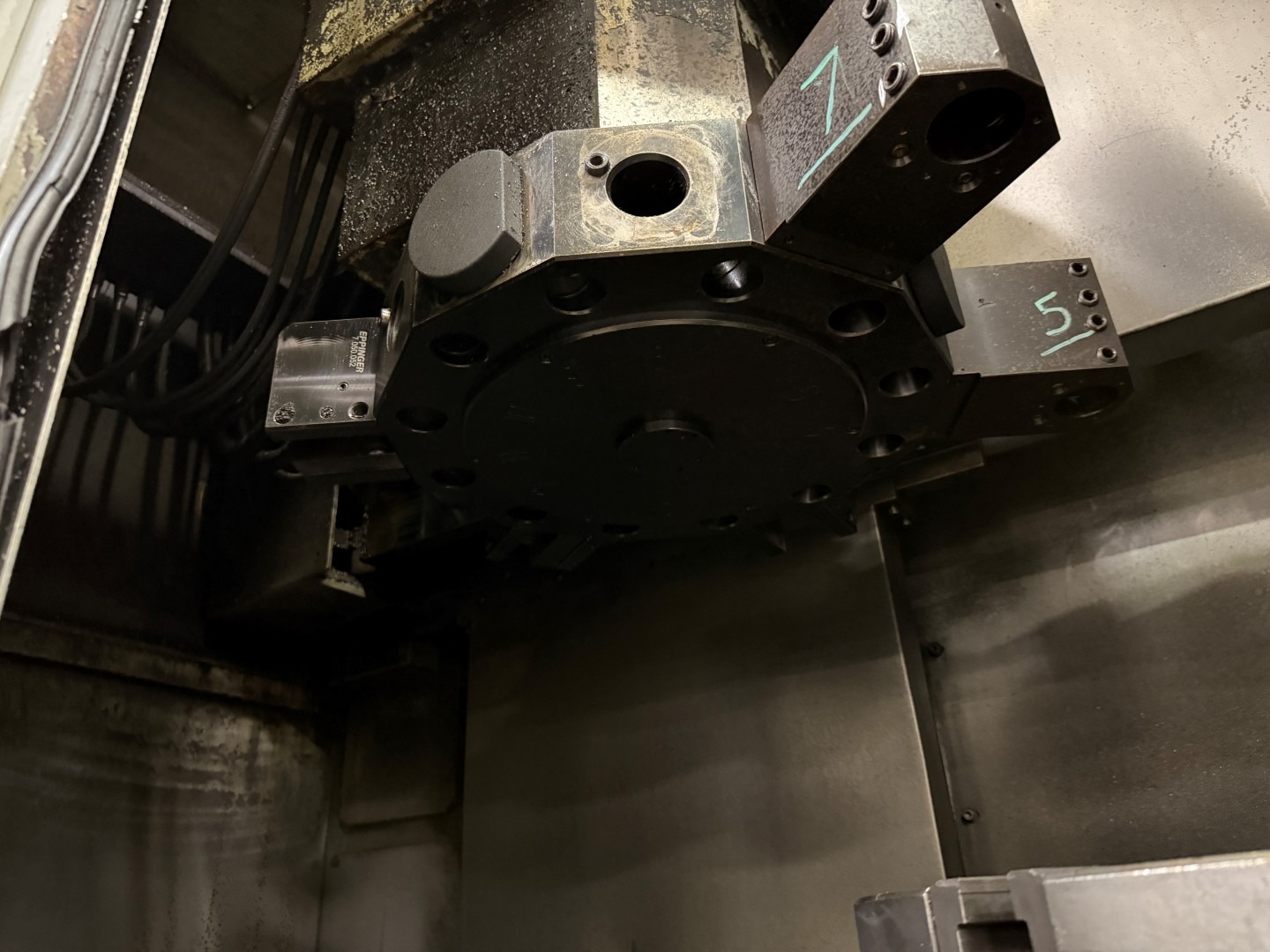

Turret Type — VDI 50
Number of Tool Stations — 12 + 12
Maximum Tool Shank Size — Ø50 mm (2.00″)
Machine Weight — Approx. 19,000 kg (41,876 lbs)
Equipped With

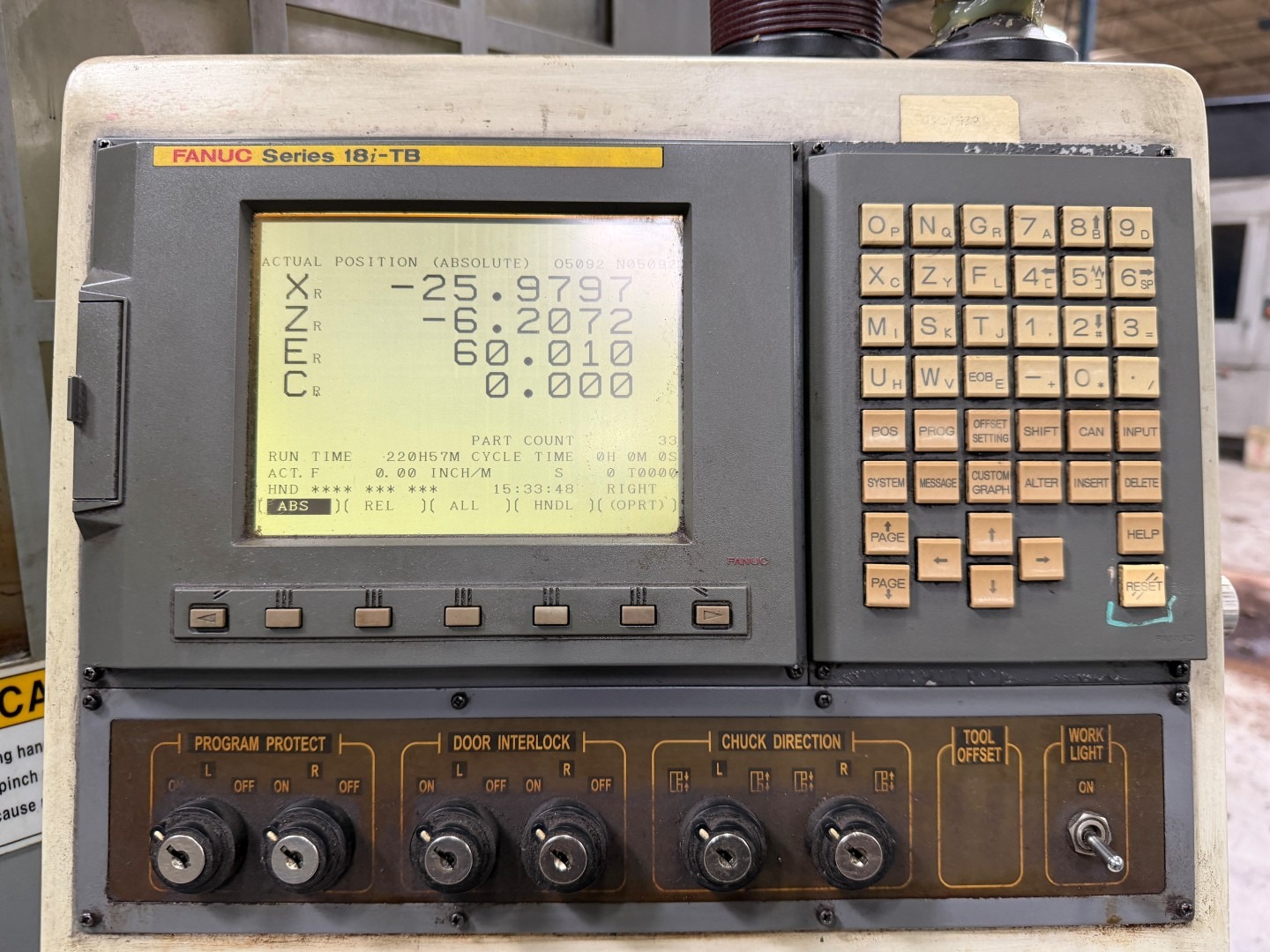

* Fanuc Series 18i-TB CNC Control Operating Both Machines
* Twin-Spindle Configuration
* Live Milling Capability

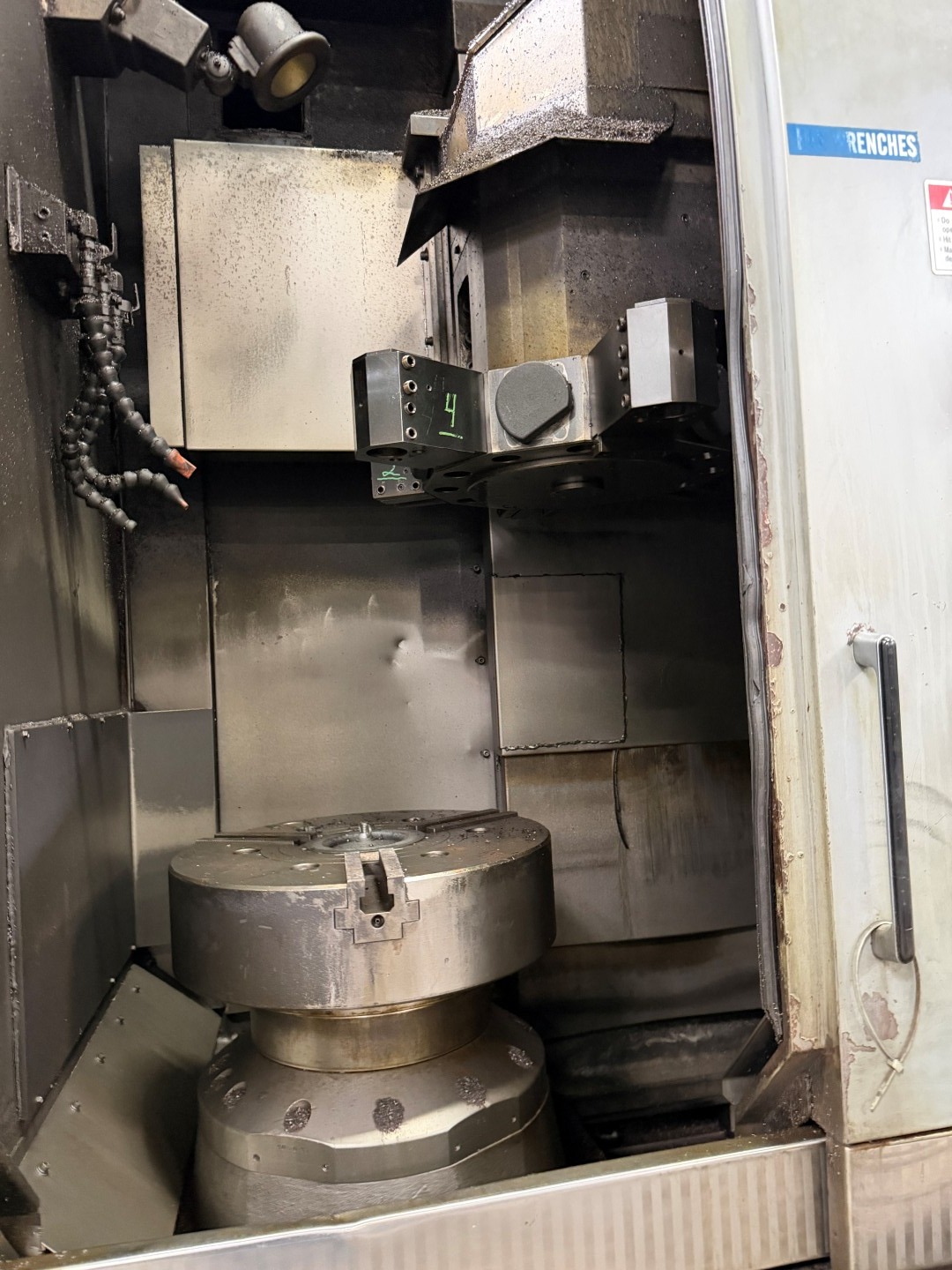

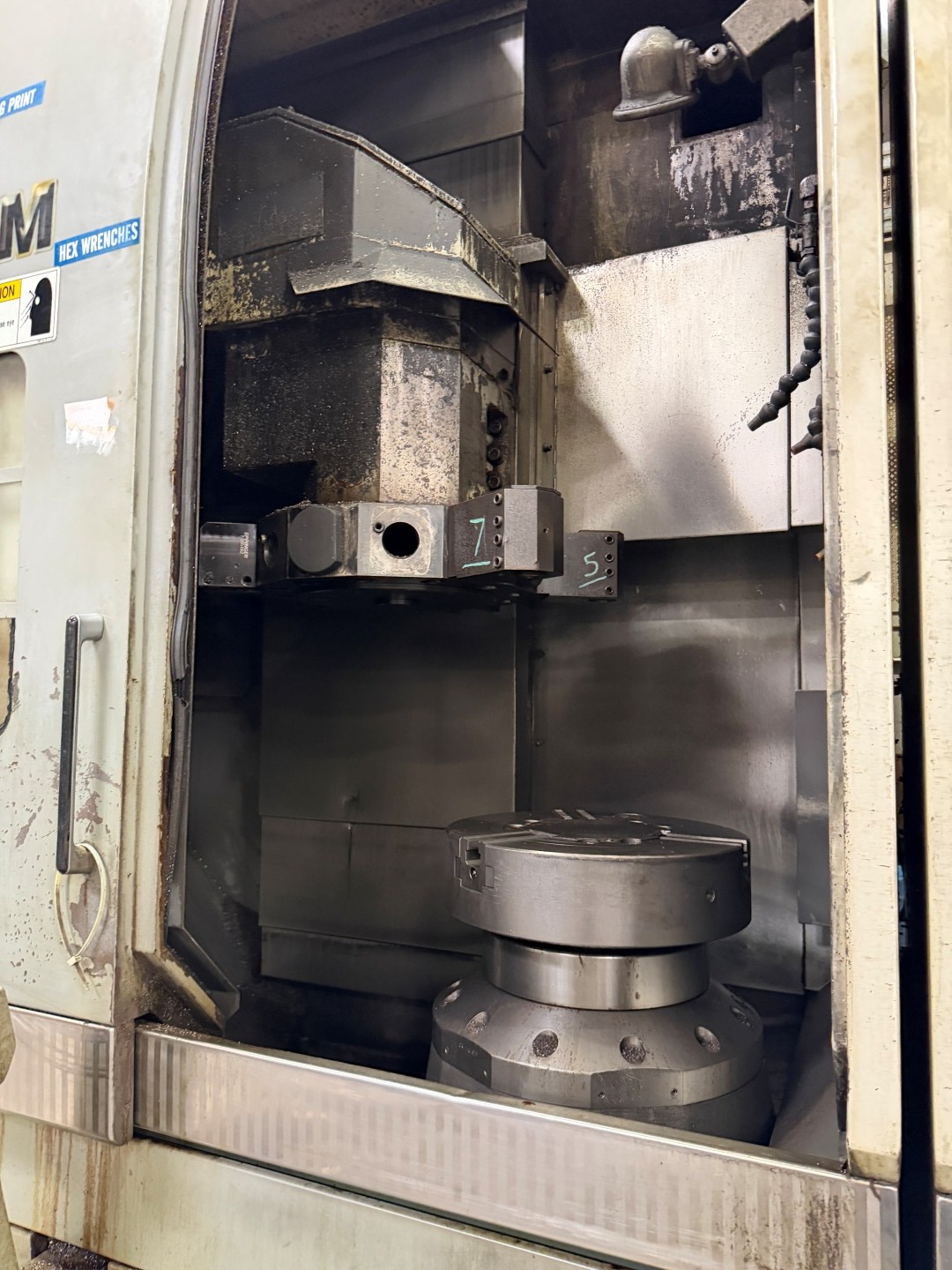

* 457 mm (18″) 3-Jaw Hydraulic Chuck
* 533 mm (21″) 3-Jaw Hydraulic Chuck on Opposite Side

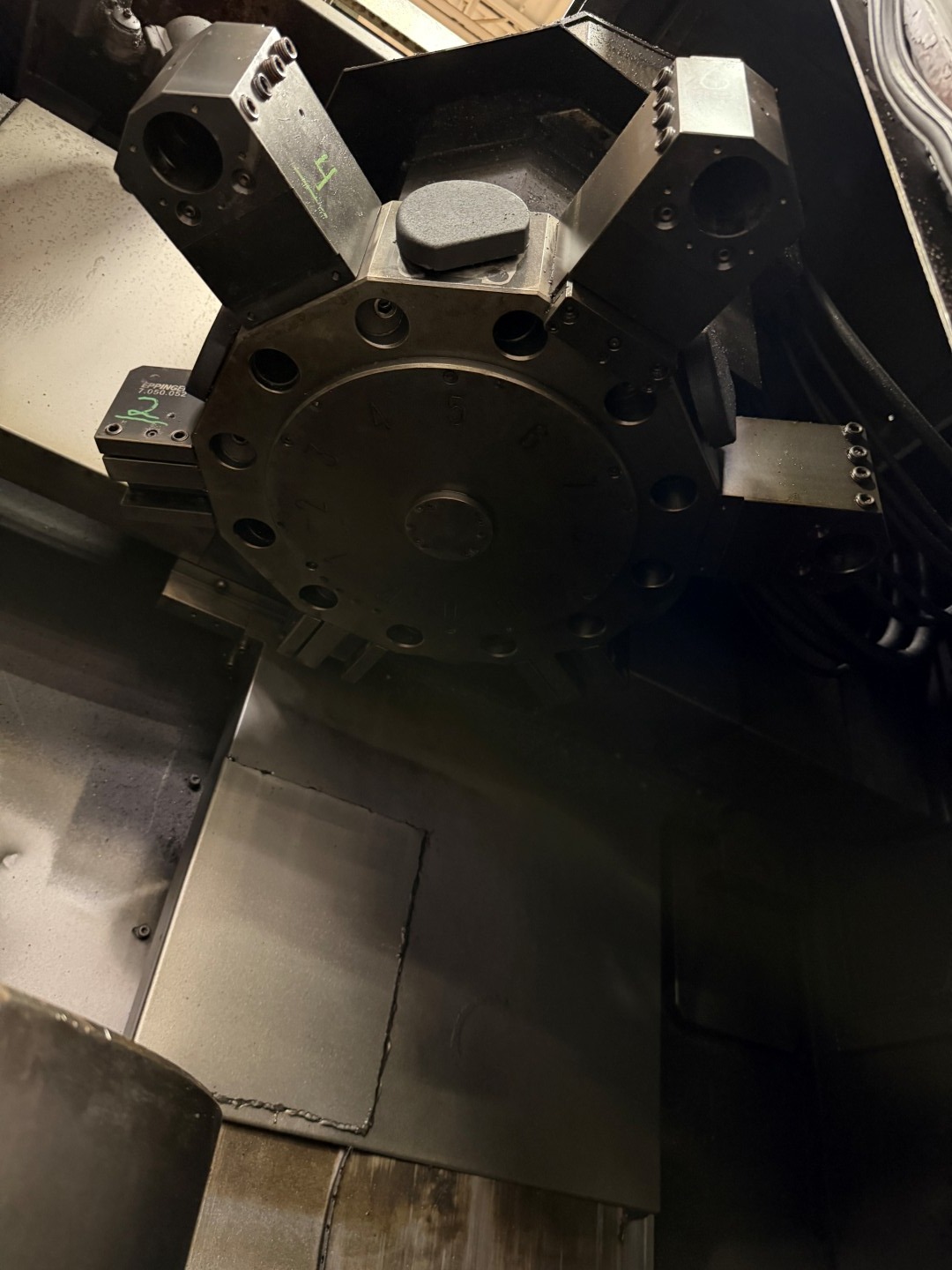

* (2) 12-Position Turrets
* Work Lights

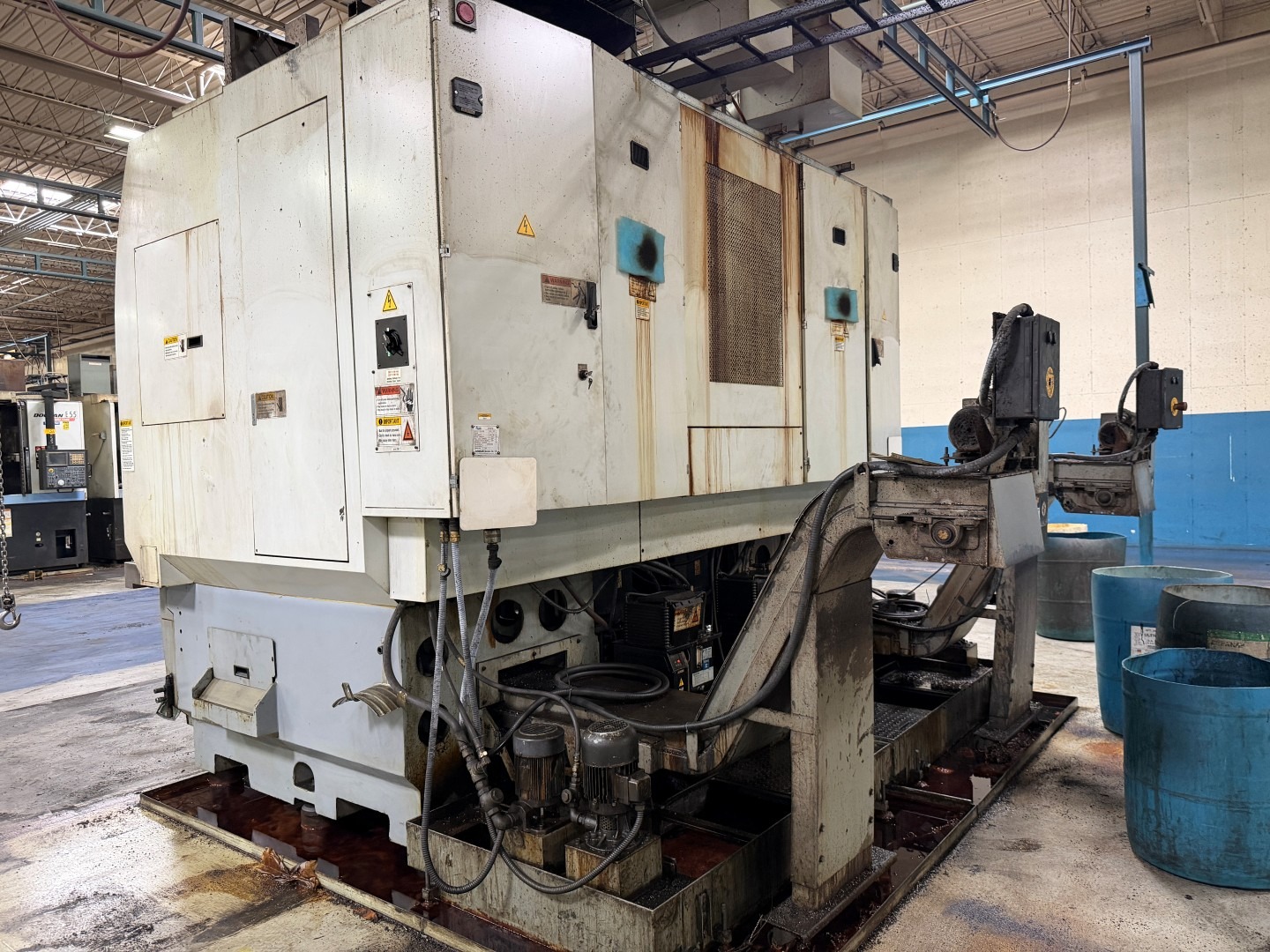

* (2) Chip Conveyors
* (2) Mist Collectors
* Twin-Spindle Unit Counted as One Machine
