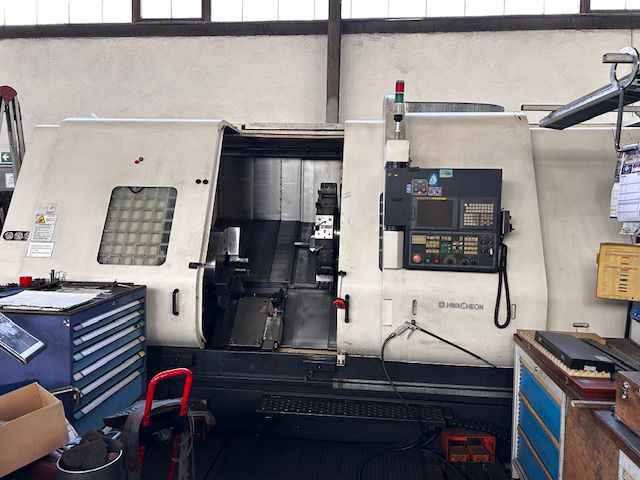

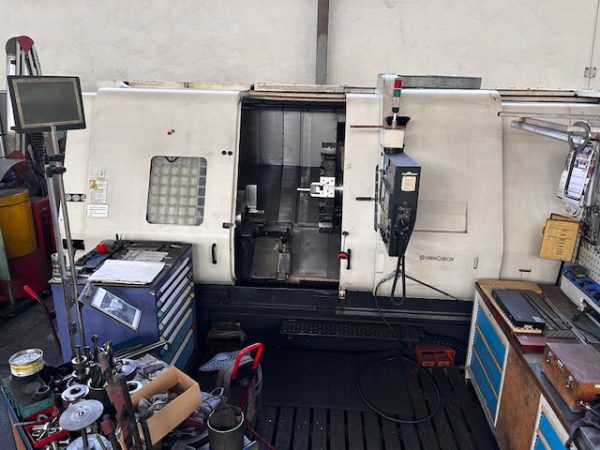

Hwacheon Hi-TECH 700 CNC Turning Center

Hwacheon Hi-TECH 700 CNC Turning Center

CNC Turning Center

Specification:

Swing: 900 mm
Max. turning diameter: 700 mm
Standard turning diameter: 381 mm
Maximum turning length: 2,000 mm
Chuck size: 380 mm
Spindle speed: 1,800 per minute
Spindle connection: A2-11 ASA
Spindle bore diameter: 132 mm
Pull tube diameter: 117 mm
Spindle bearing diameter: 180 mm
Main drive power (100/50% ED): 30/37 kW
Maximum torque: 3,070 Nm

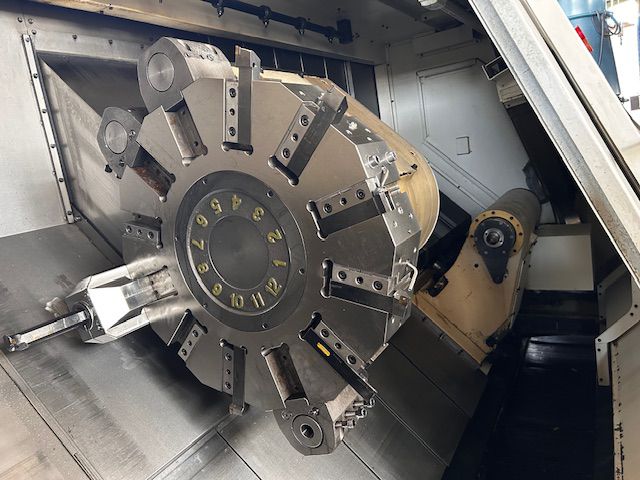

Turret number of tools: 12
Tool size: 32 x 32 / Ø63 mm
Rapid Traverse(X/Z): 24/24 m/min
Travel X: 385 mm
Travel Z: 2070 mm
Quill-Ø: 150 mm
Quill Stroke: 150 mm
Dimension L x W x H: 4.895 x 2.310 x 2.500:
Basic weight: 15000 kg
CNC Control: Fanuc 18i-TB
