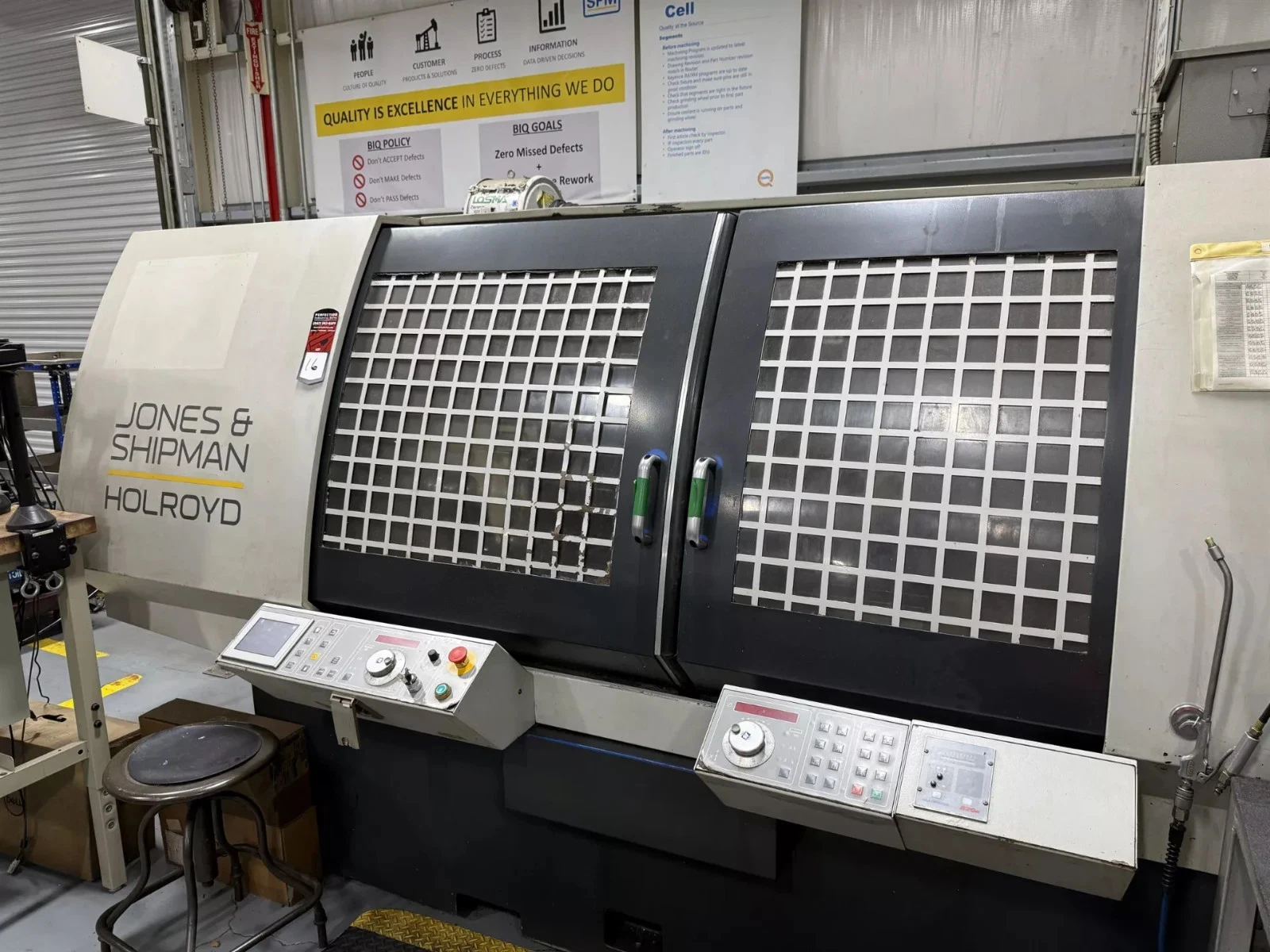

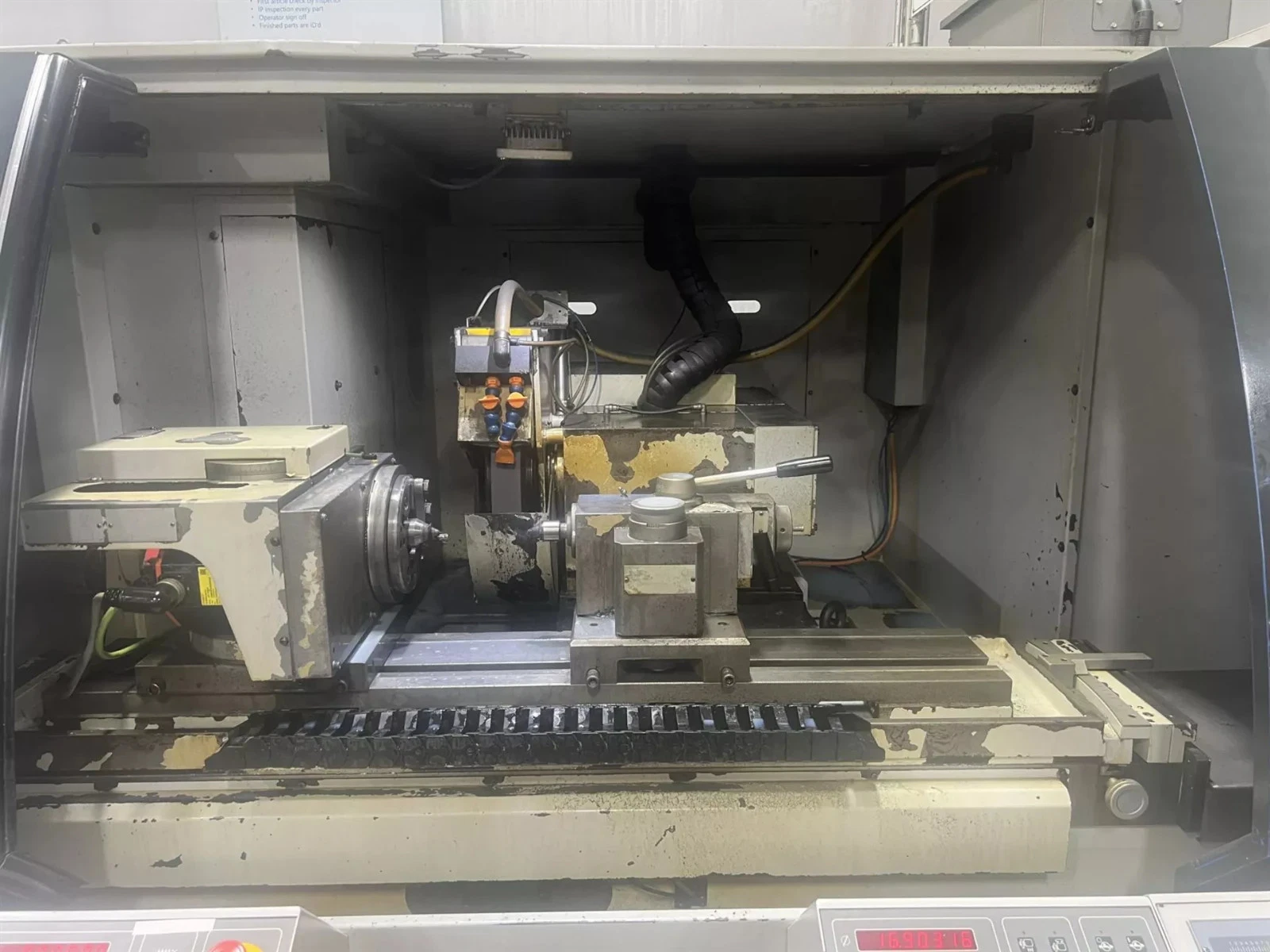

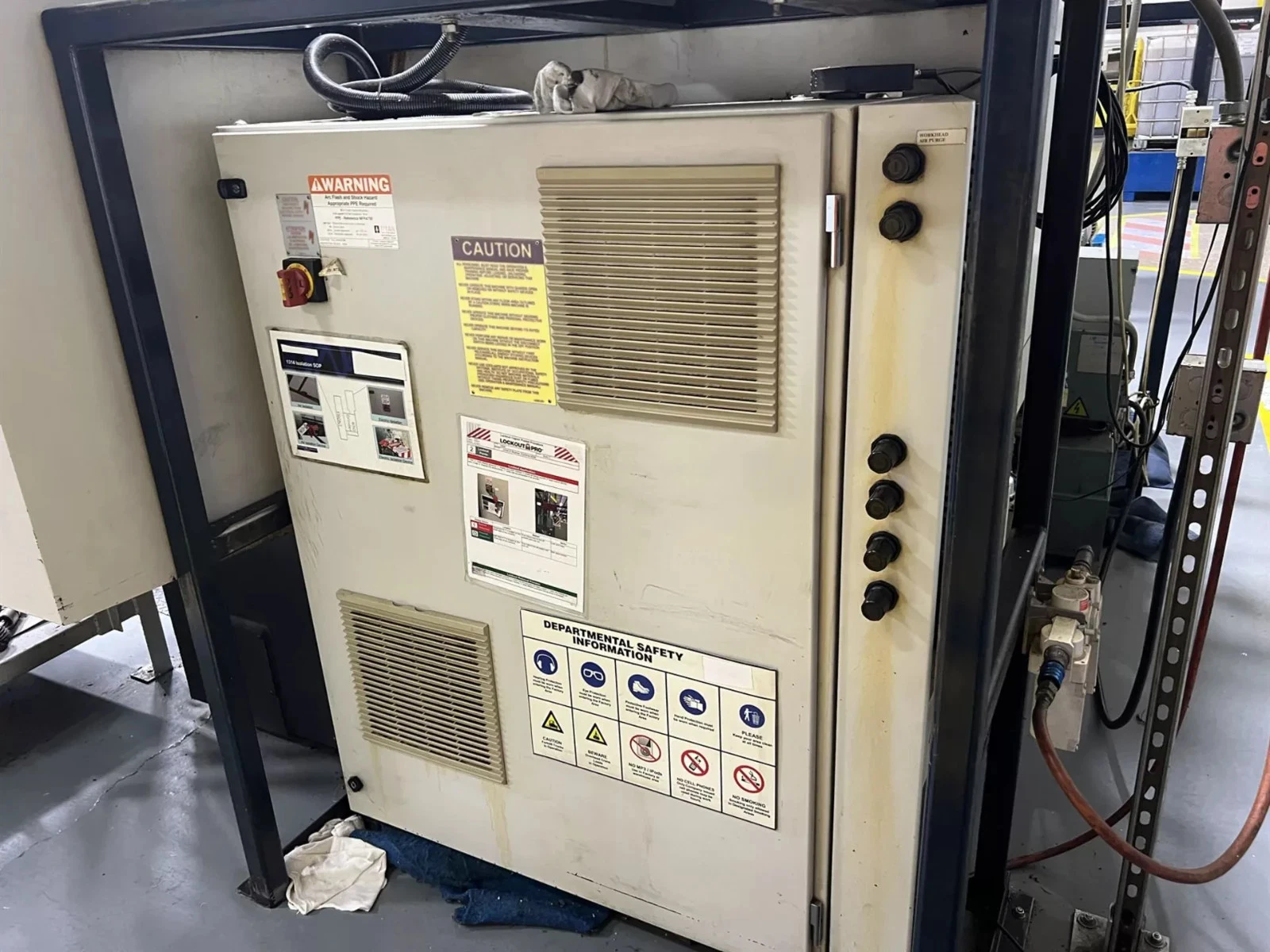

Jones and Shipman Suprema 650 Easy E Universal OD/ID Grinder
Description
Jones and Shipman Suprema 650 Easy E Universal OD/ID Grinder
Universal OD/ID Grinder
Specification:
Grinding Length: 650.2 mm (25.6″)
Swing Over Bed: 299.7 mm (11.8″)
Capacity Between Centers: Maximum 99.8 kg (220 lbs.)
Table
Traverse Distance: 749.3 mm (29.5″)
Traverse Speed: Stepless 0.0001–120 m/min (0.000004–472 IPM)
Swivel: +9° / −9°

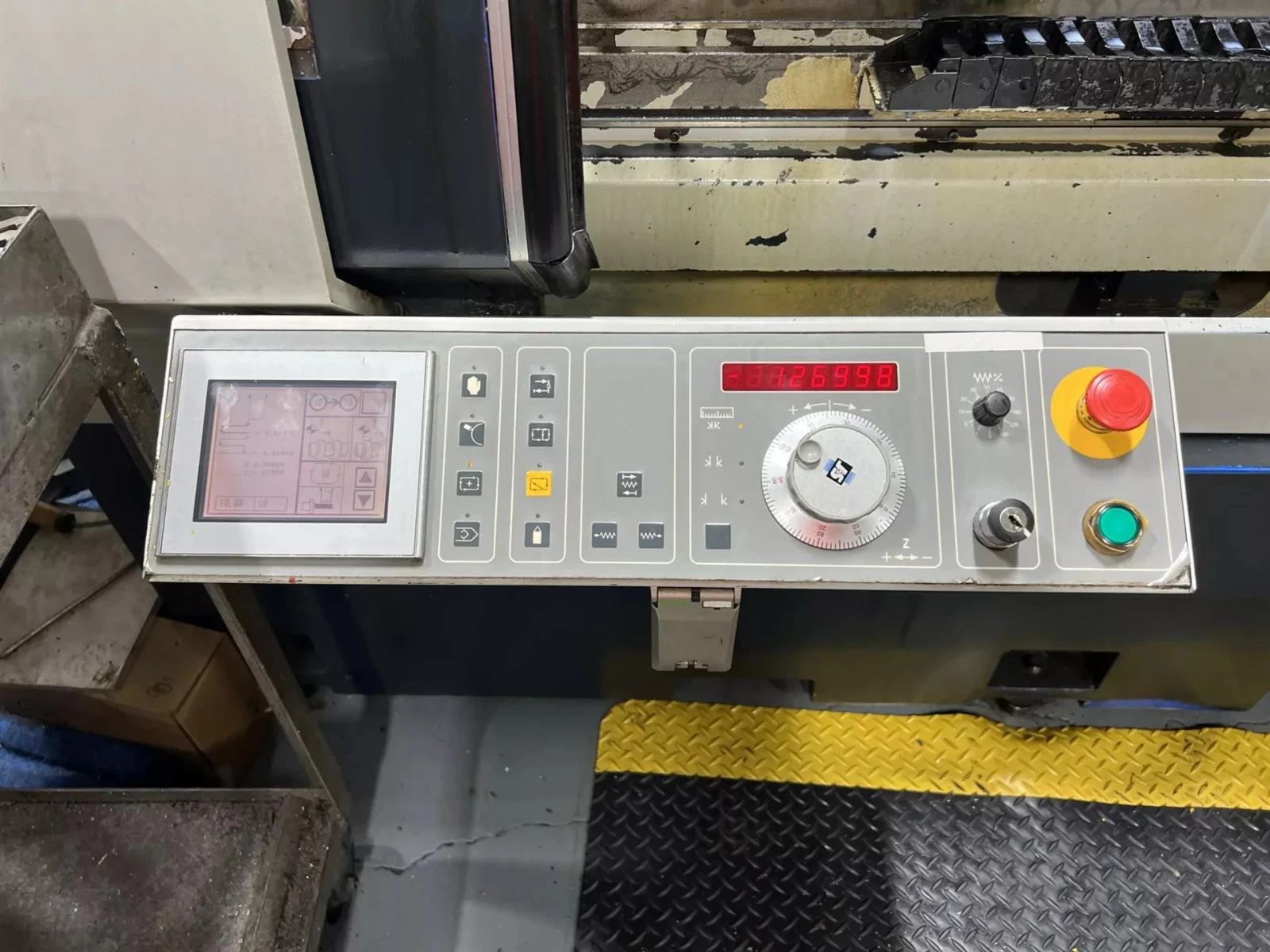

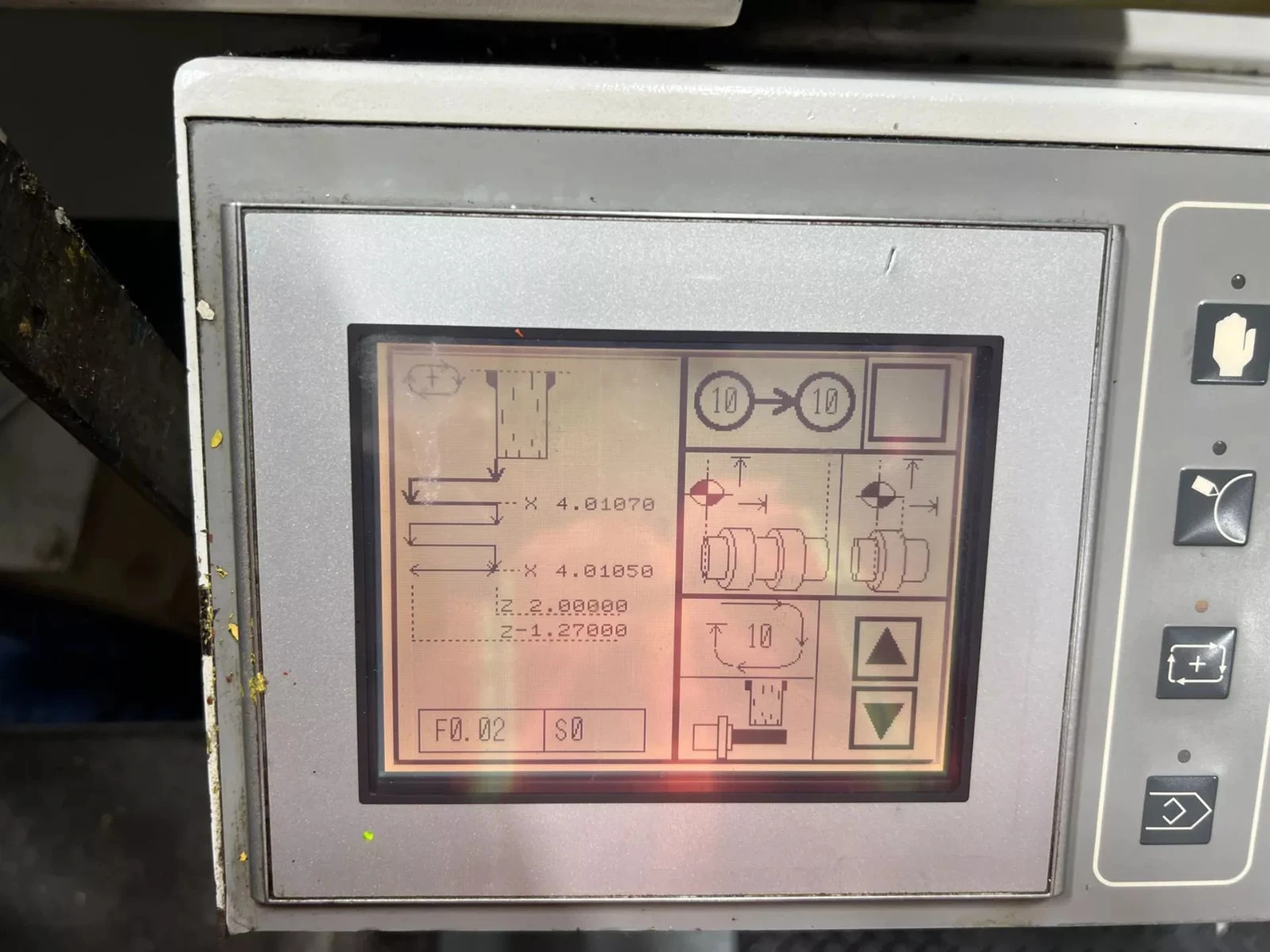

Electronic Handwheel Increment: 0.001 mm / 0.01 mm / 0.1 mm (0.00004″ / 0.0004″ / 0.004″)
Traverse Control & Feedback: Fanuc Digital AC Servo Motor
Wheel Slide
Total Infeed: 259.1 mm (10.2″)
Infeed Rate: 0.0001–0.0061 m/min (0.000004–0.24 IPM)
Electronic Handwheel Increment: 0.001 mm / 0.01 mm / 0.1 mm (0.00004″ / 0.0004″ / 0.004″)
Infeed Control & Feedback: Fanuc Digital AC Servo Motor

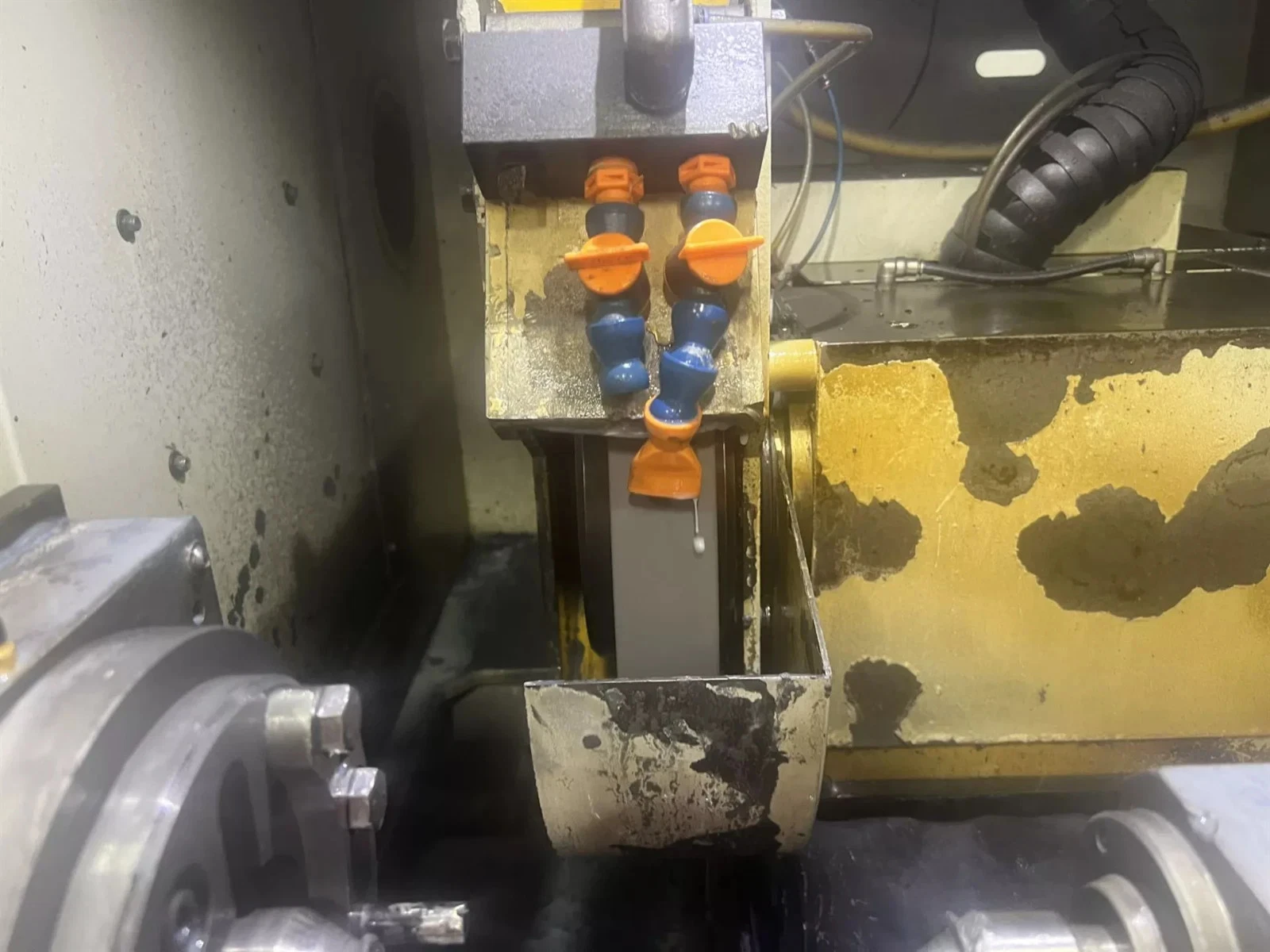

Wheelhead (Universal)
Type: Swiveling
Main Motor: 4.2 kW (5.6 HP)
Wheel Speed: 32.9 m/s (108 FPS), variable speed by means of 5.5 kW frequency drive
Left Hand Wheel: 398.8 mm Ø × 50.8 mm W × 127 mm Bore (15.7″ Ø × 2″ W × 5″ Bore)
Right Hand Wheel: 348.0 mm Ø × 25.4 mm W × 127 mm Bore (13.7″ Ø × 1″ W × 5″ Bore)

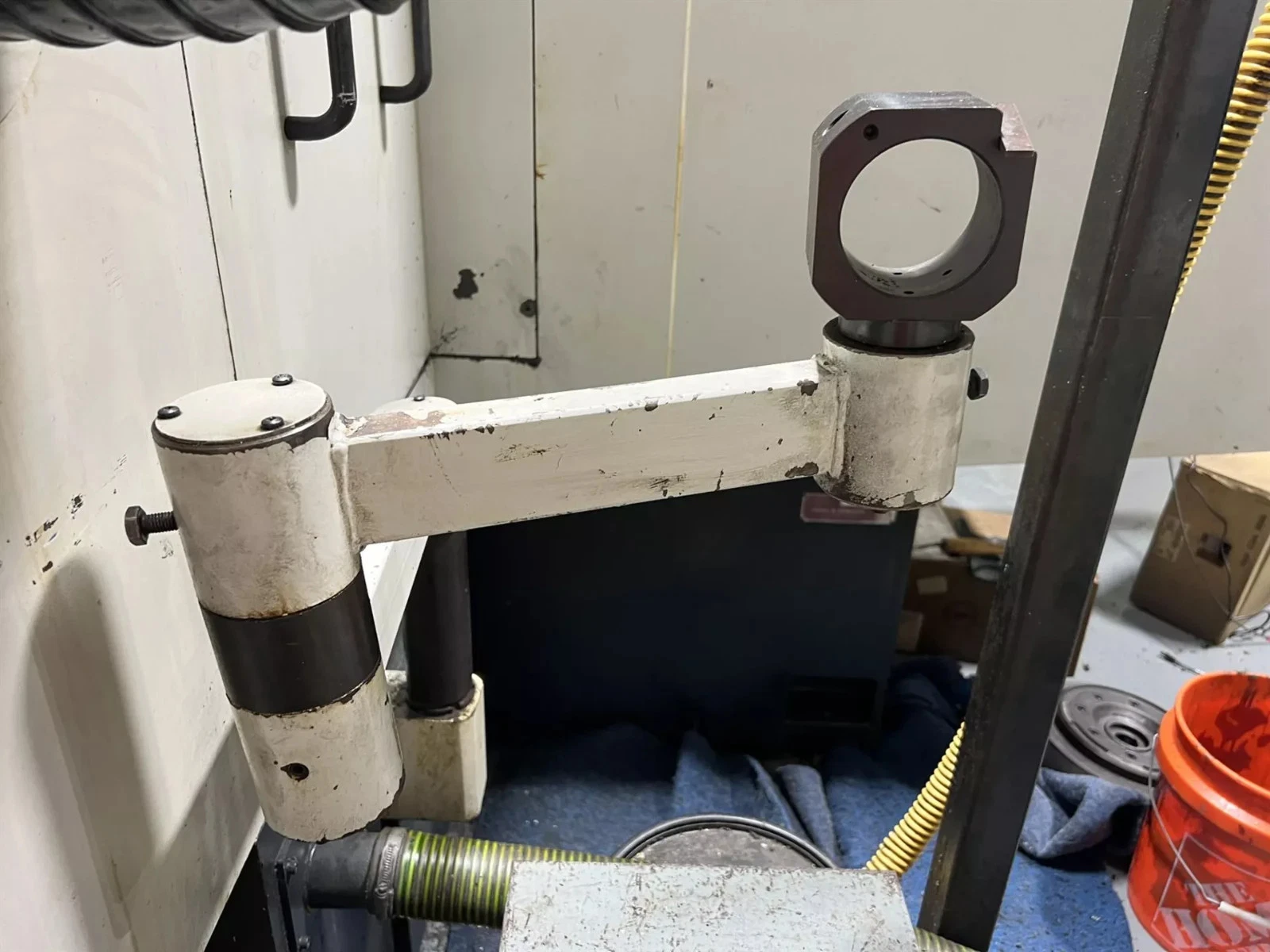

ID Grinding System Motor Power: 2.2 kW (3 HP), variable by means of 2.2 kW frequency drive

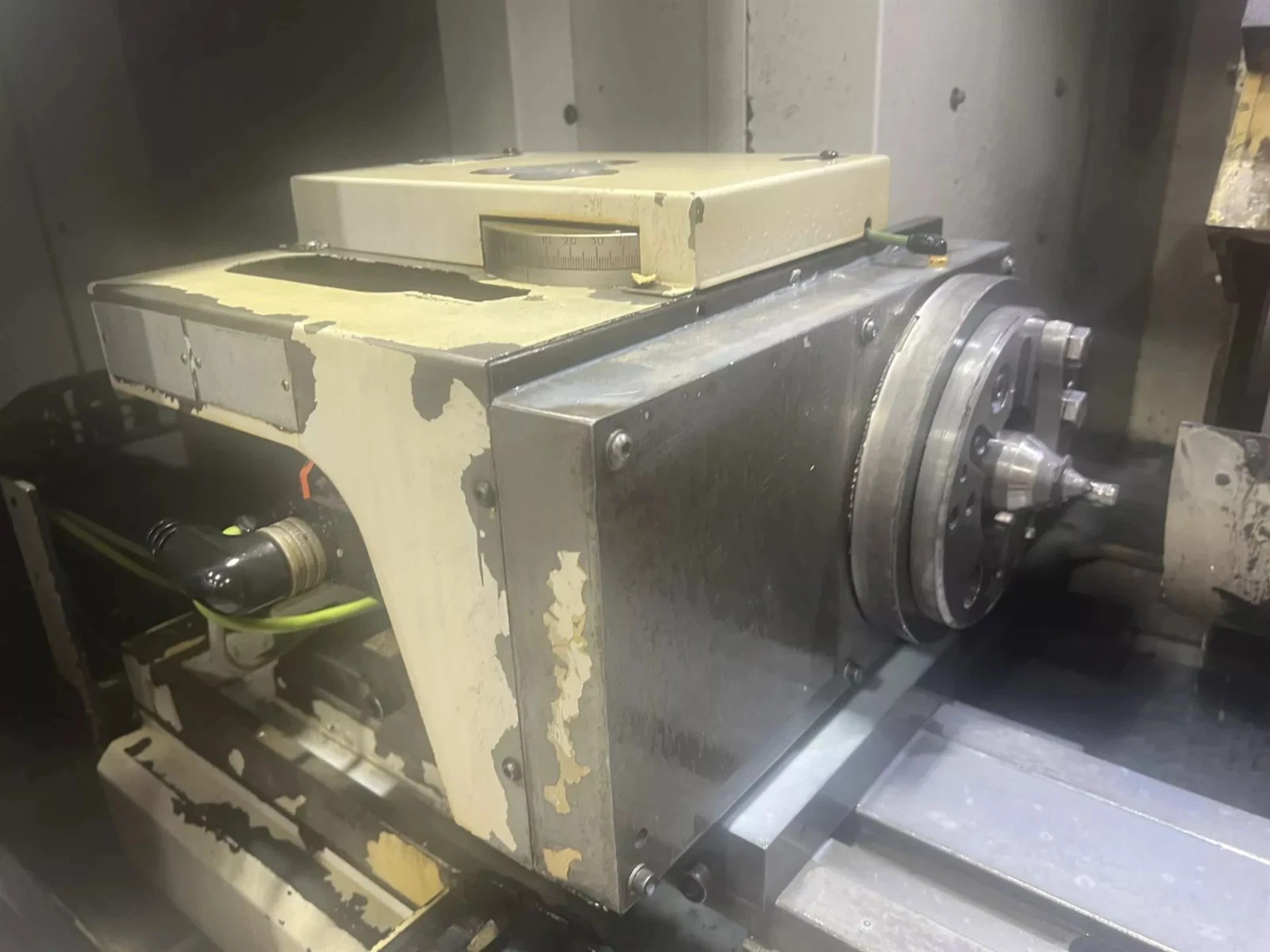

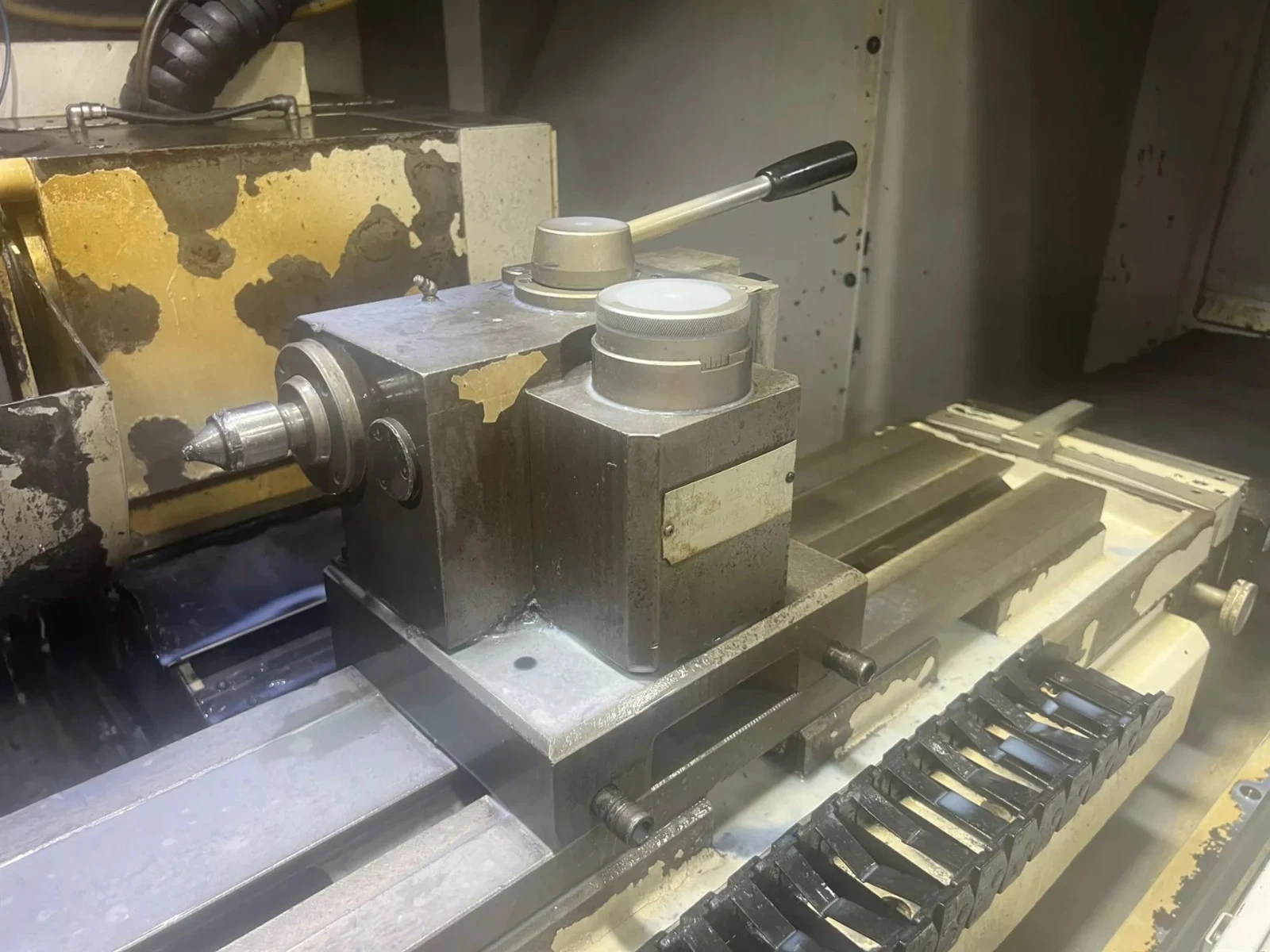

Workhead
Type: Live & Dead Centre
Swivel Range: −15° / +90°
Speed Range: Infinitely Variable, 0–660 RPM
Output Torque: 27.1 N·m (20 lb·ft.)
Spindle Taper (Standard / Reduced): #5 MT / #3 MT
Machine
Machine Weight: 5,443 kg (12,000 lbs.)
Machine Dimensions: 3,378.2 mm (L–R) × 2,108.2 mm (F–B) × 2,565.4 mm (H) (133″ L–R × 83″ F–B × 101″ H)
Coolant System
Coolant System Dimensions: 1,447.8 mm (L) × 838.2 mm (W) × 685.8 mm (H) (57″ L × 33″ W × 27″ H)
