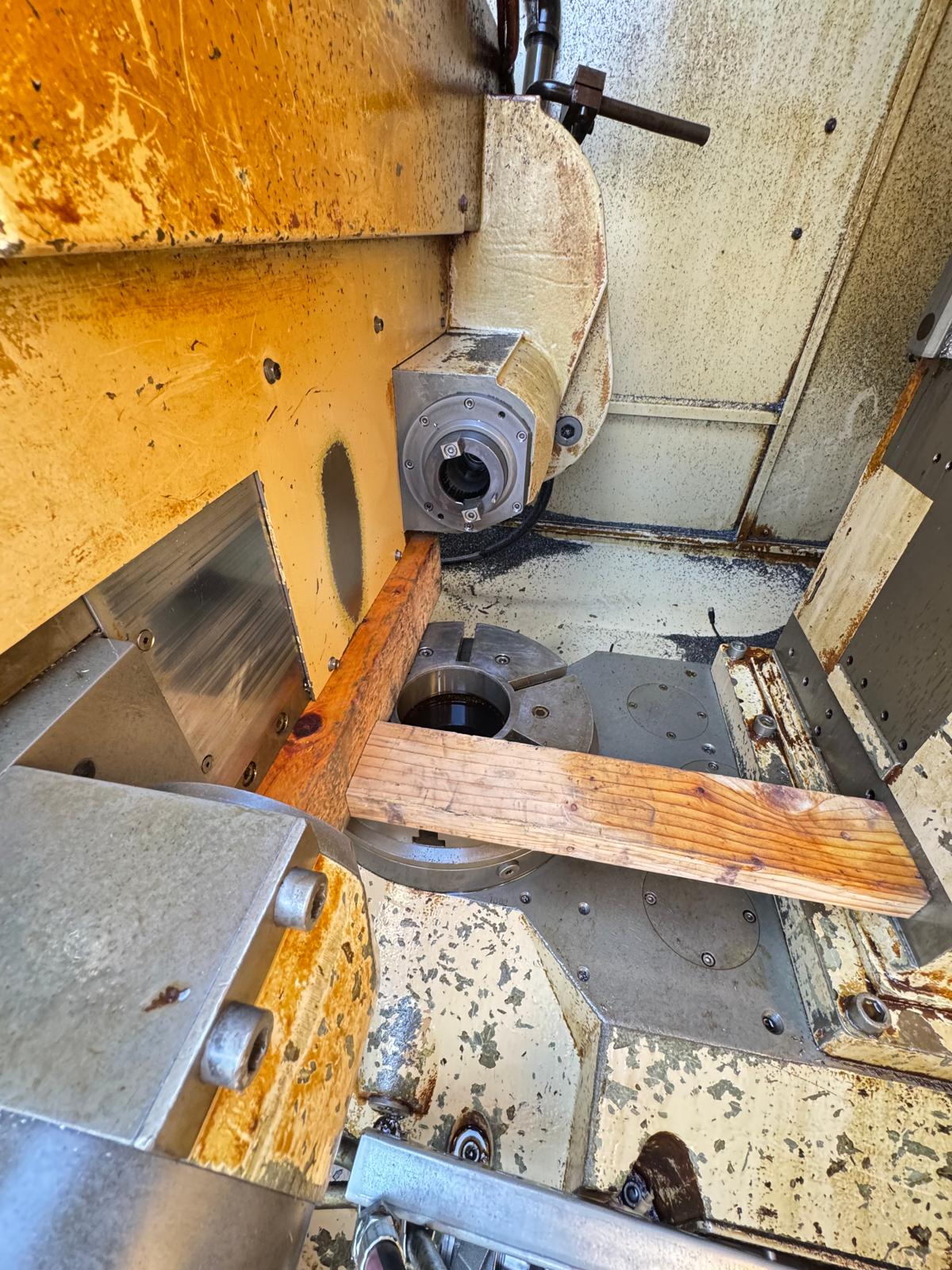

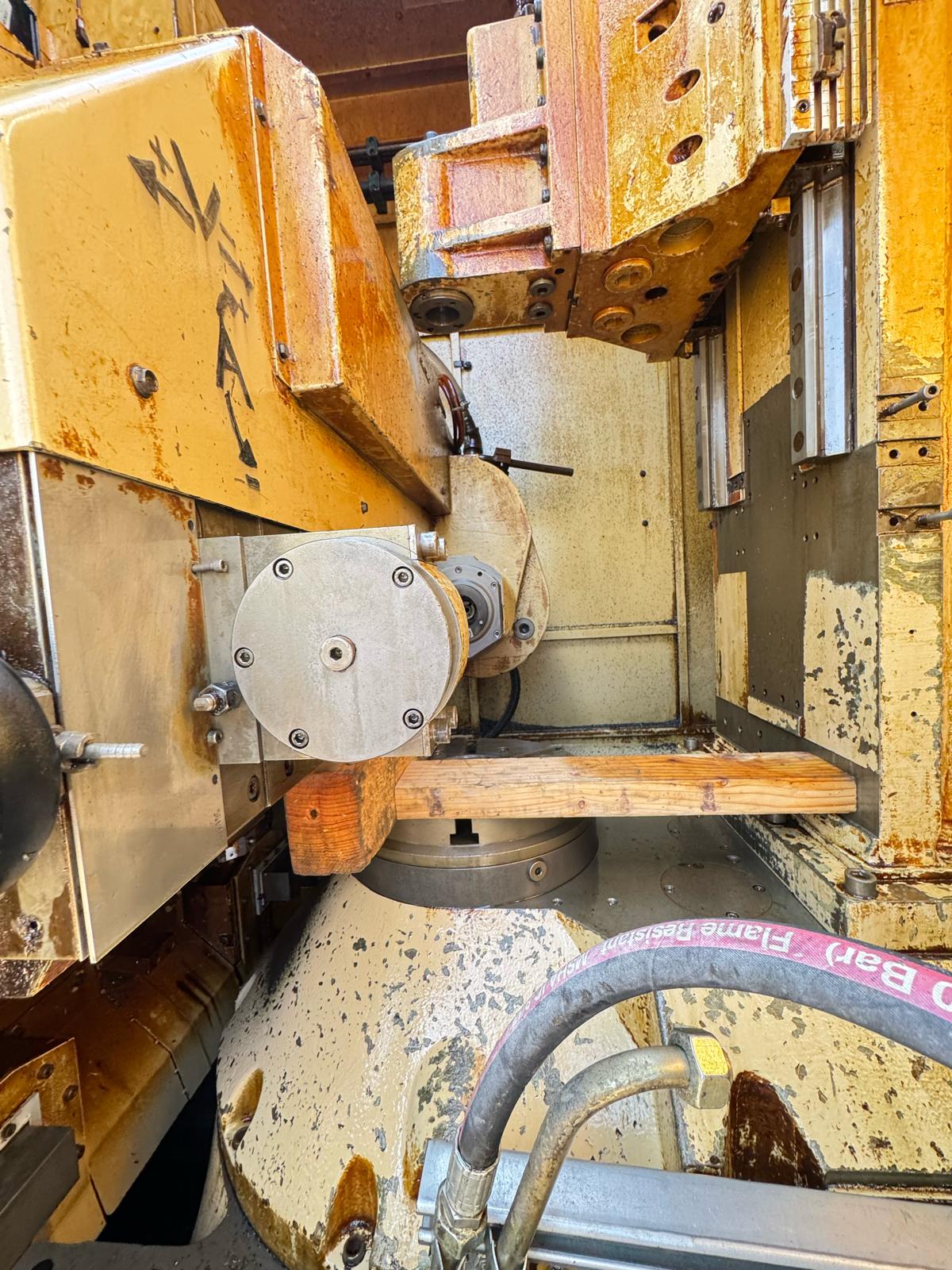

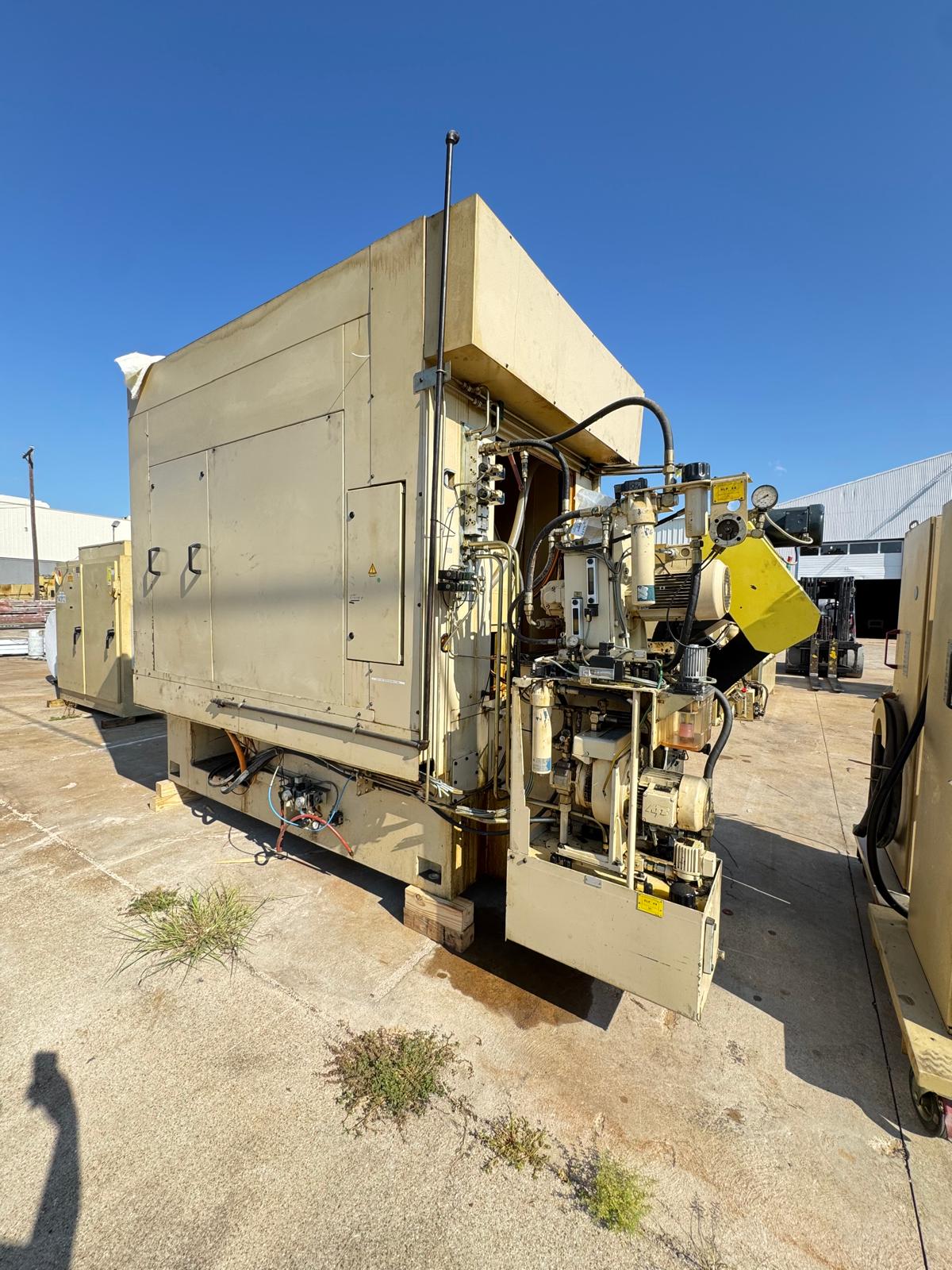

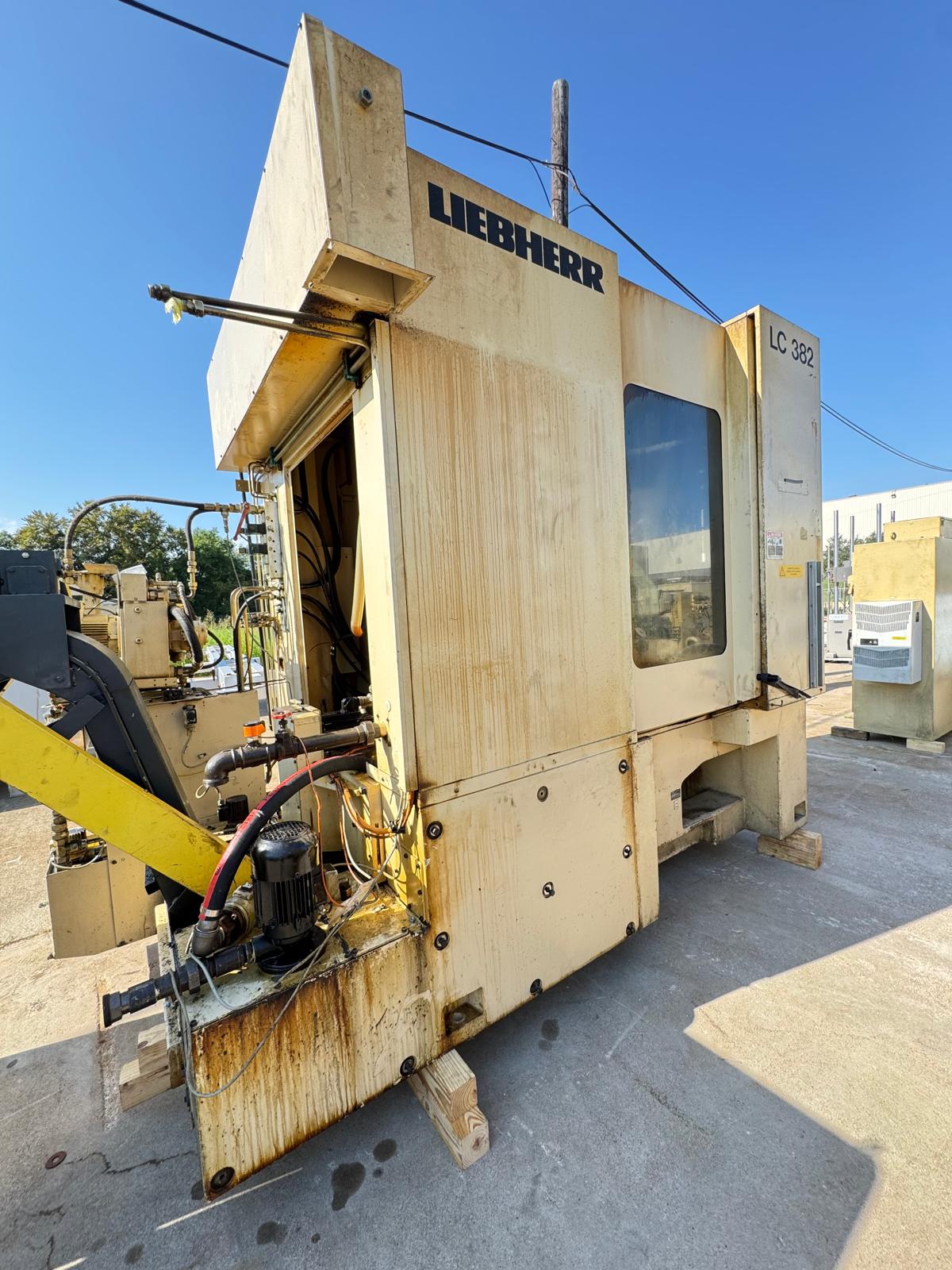

Liebherr LC 382 CNC Gear Hobber
CNC Gear Hobber
Specification:
Max diameter External gear: 380 mm
Max module to be hobbed: 7 mm
Min number of teeth: 4
Max face width: 600 mm
Max Hob diameter: 160 mm
Hob head swivel range: 45 +/-
HOB Head designation: Motor Hob Head
Hob Speeds: 50….500 1/min
Max center distance: 270 mm
Max Clearance Height under tailstock: 1000 mm approx
Table Diameter: 320 mm
Workpiece table load: 18 KN
Power requirements: 460V/60HZ/
Total power: 63Amps
