Lorenz LS 180 CNC Gear Shaping Machine
Description

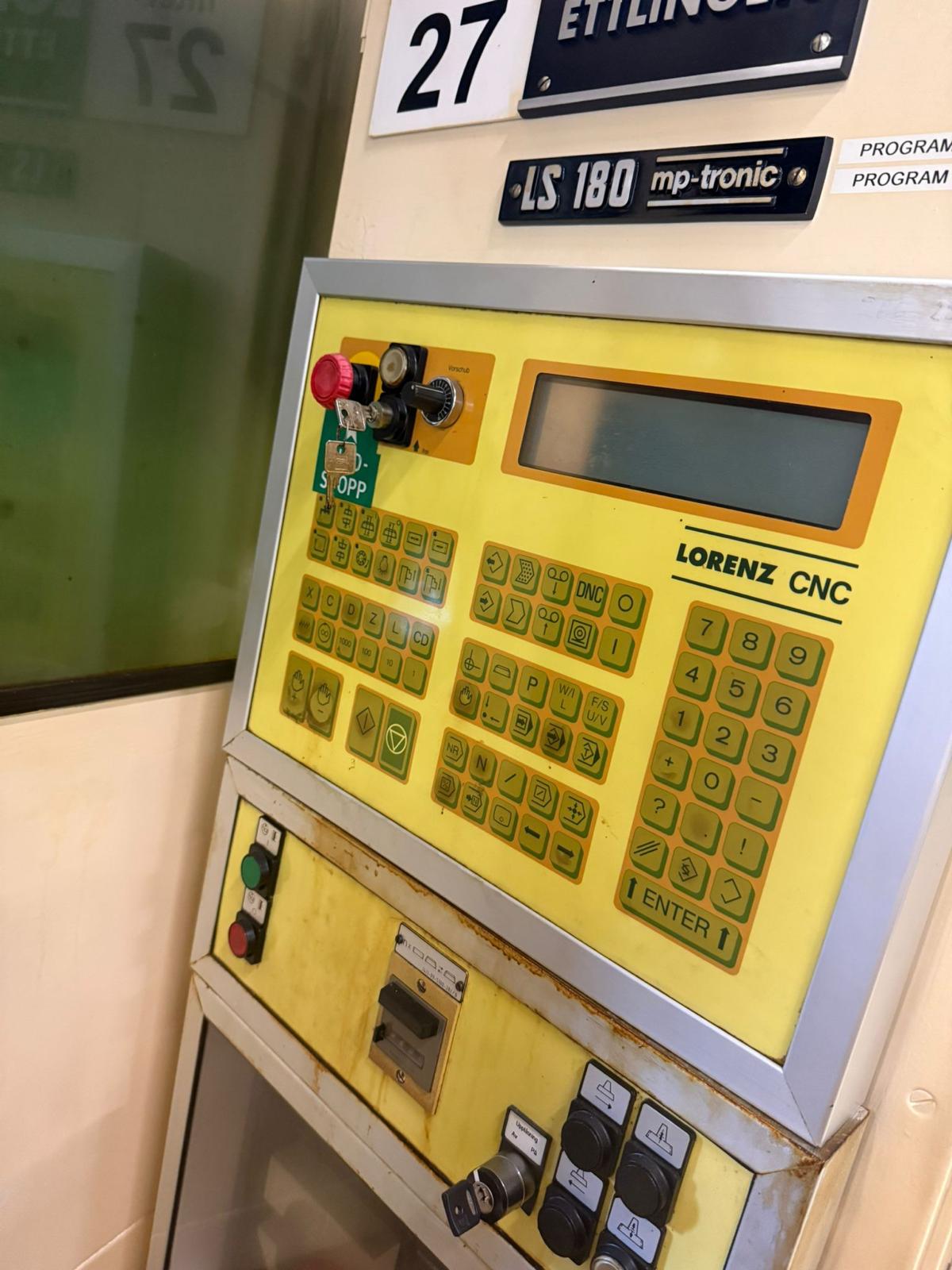

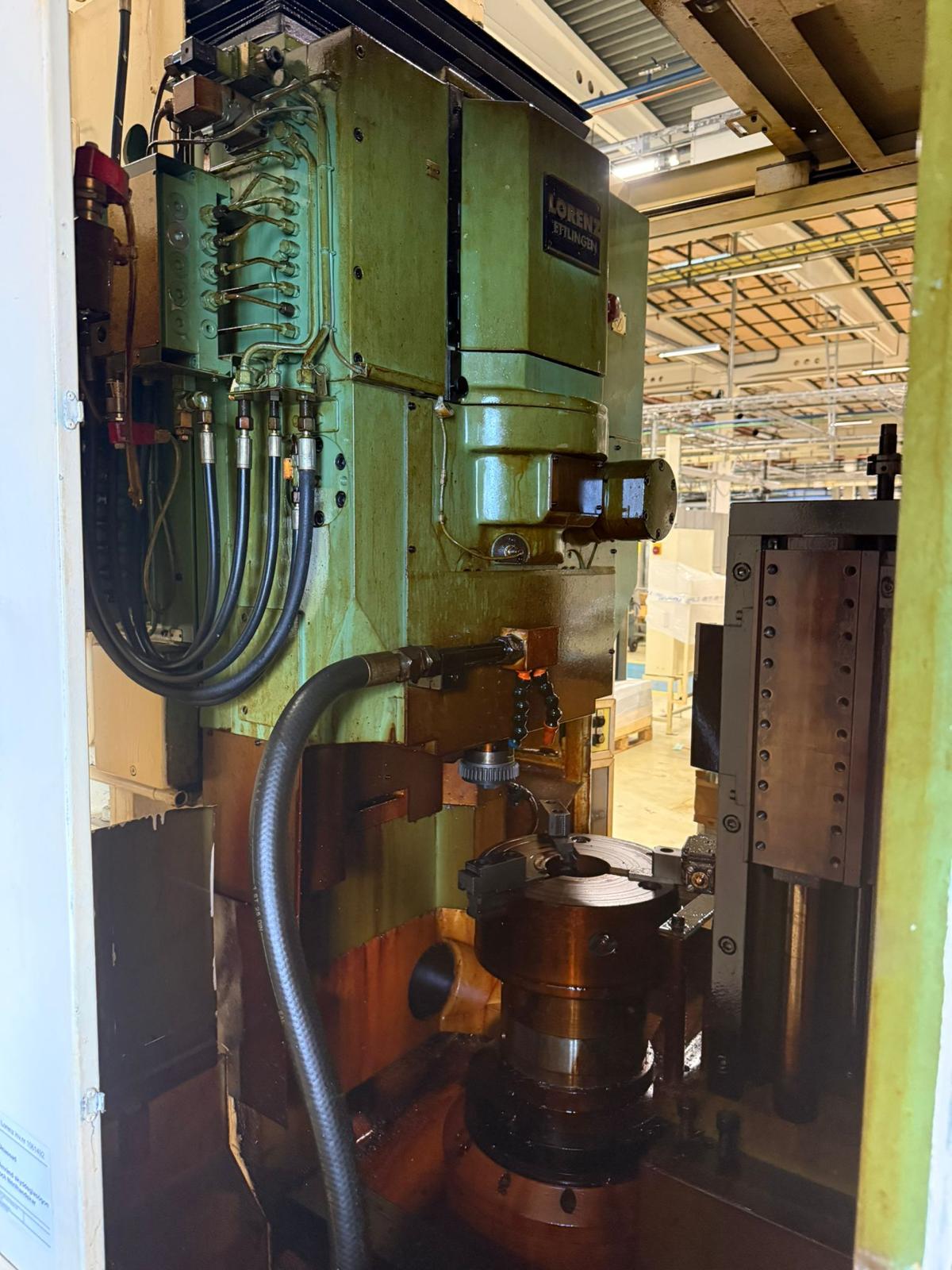

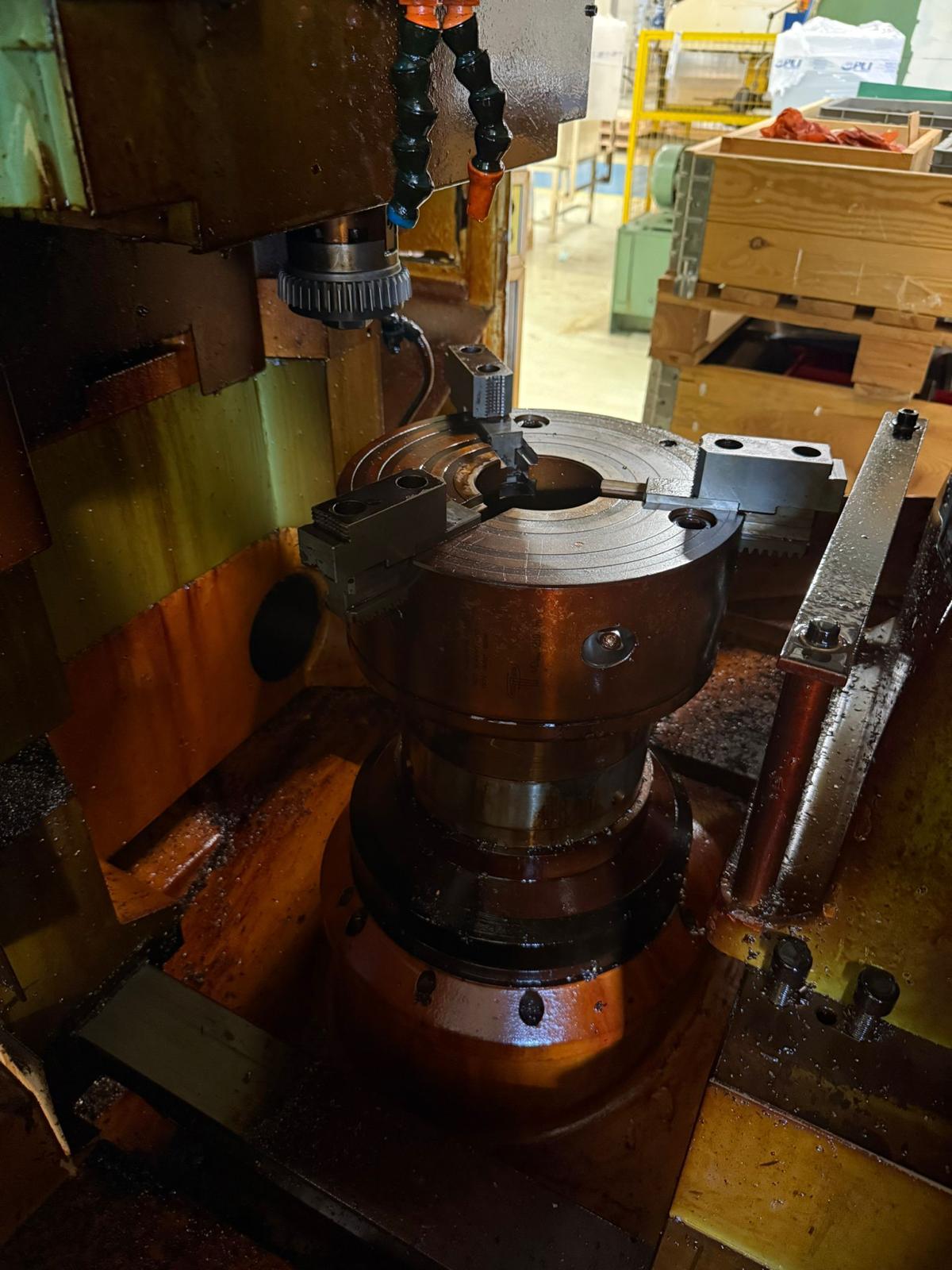

Lorenz LS 180 CNC Gear Shaping Machine
CNC Gear Shaping Machine
Specification:
Max. Pitch Circle Diam., External Gear: 177.8 mm (7″)
Max. Workpiece Diam., Internal Gear: 279.4 mm (11″)
Max. Tooth Width: 50.8 mm (2″)
Max. Module: 5 DP
Max. Travel:
X + Direction: 175 mm (6.89″)
X – Direction: 30 mm (1.18″)
Z – Direction: 149.9 mm (5.9″)
Programmable Number of Teeth: 5-200
Connected Load: 44 kVA
Speed Range, Main Motor: 650-3250/min
Stroke Rate Range: 250-1250/min
Output Main Motor: 6 kW@1000/min
Max. Motor RPM:
Cutter, C Axis: 2000/min.
Workpiece, D Axis: 2000/min.
Radial, X Axis: 3000/min.
Axial, Z Axis: 3000/min.
Rotary Motion:
Cutter at diam.100, C Axis: 241.3-4826 mm/min (9.5″-190″/min)
Workpiece at diam. 100, D Axis: 4.8-9652 mm/min (.189″-380″/mn)
Radial Motion, X Axis: 0.762-1800 mm/min (.03-70.87″/mn)
Axial Motion, Z Axis: 0.762-1800 mm/min (.03-70.87″/mn)
Machine Weight: 6,804 kg (15,000 LBS)
