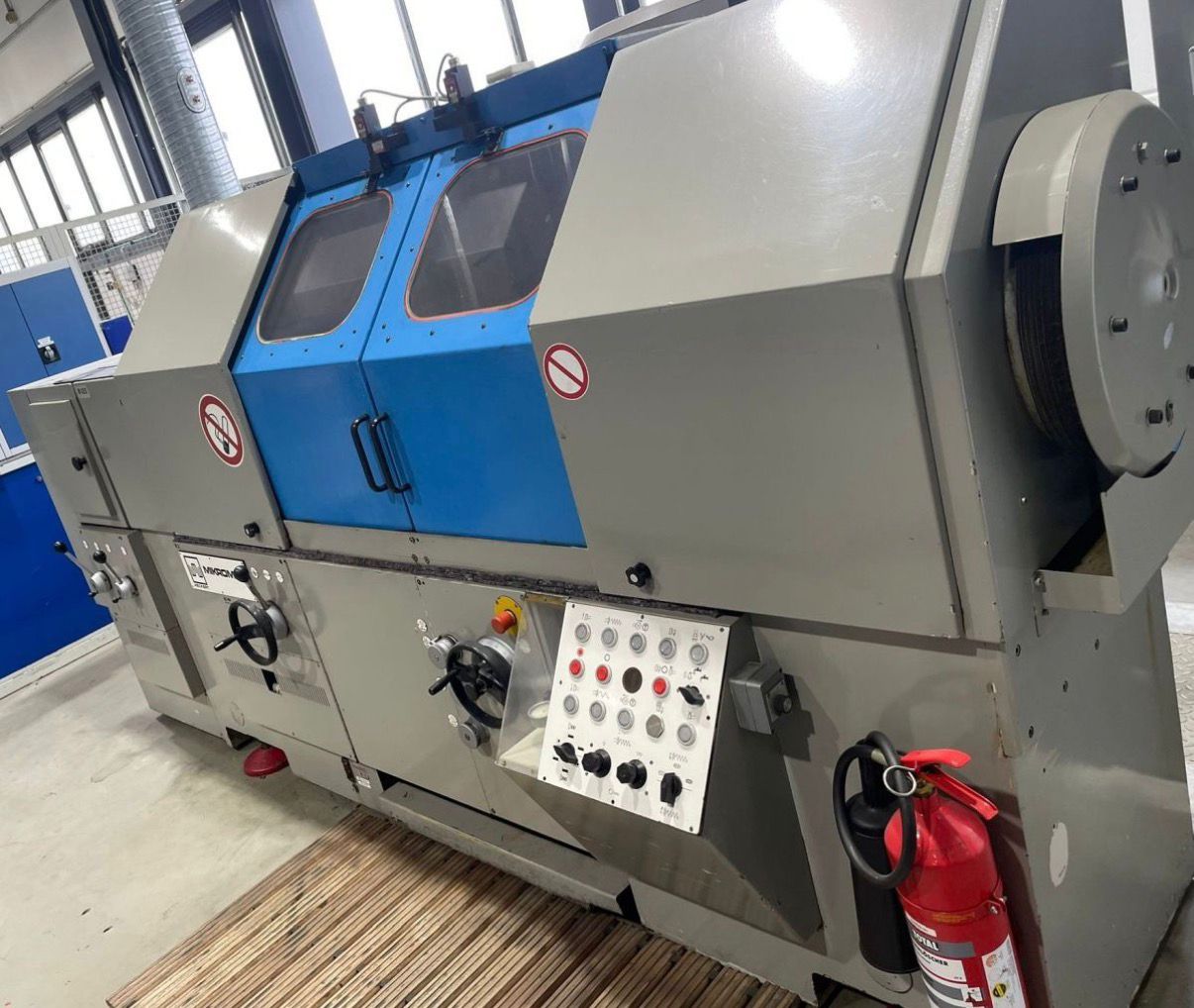

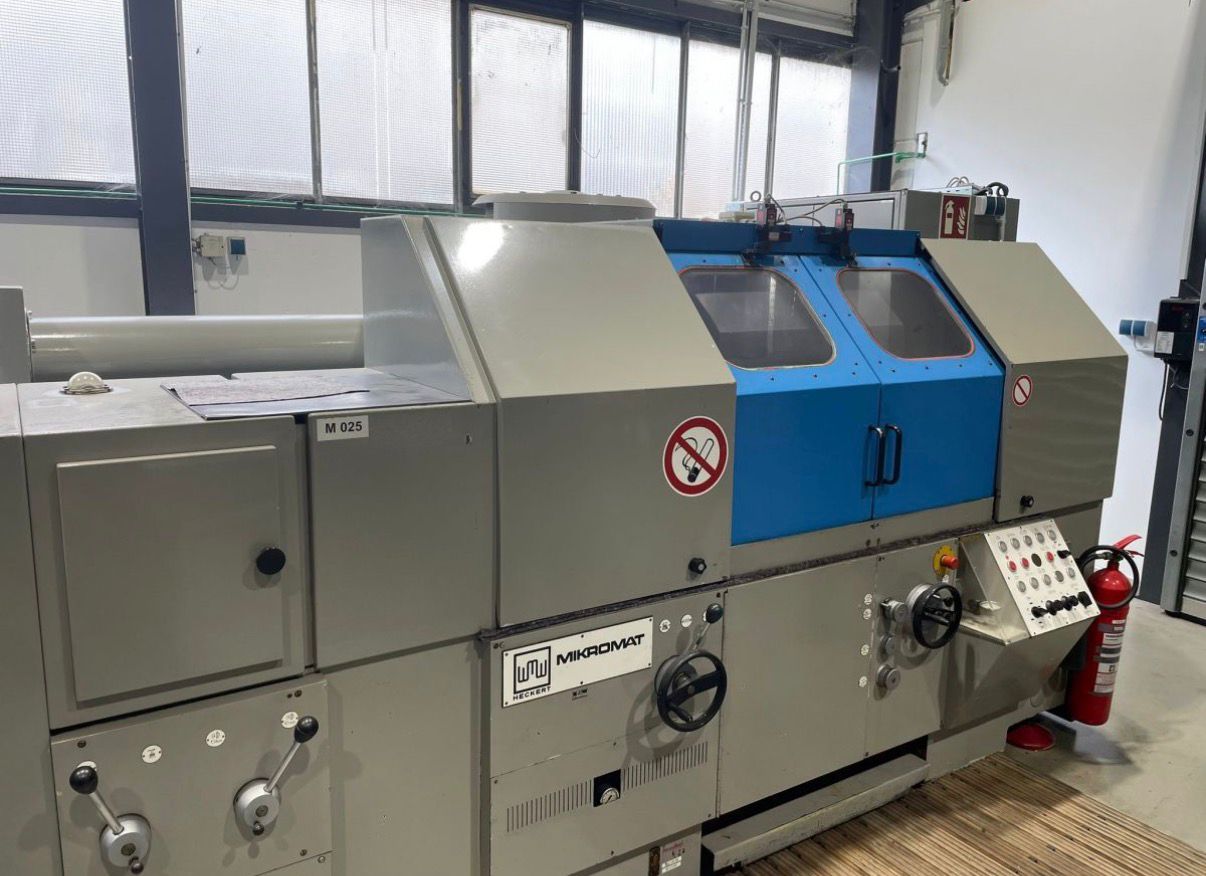

MIKROMAT GSU 315/1 x 500 Thread Grinding Machine

MIKROMAT GSU 315/1 x 500 Thread Grinding Machine

Thread Grinding Machine

Specification:

Grinding diameter: 2-315 mm
Max grinding length:
-With wheel of 50 mm width: 500 mm
-With wheel of 8 mm width: 550 mm
Max workpiece weight: 160 kg
Max center distance: 950 mm
Spindle bore: 40 mm
Spindle taper (metrical): 80 mm
Max. pitch: M20
Max lifting angle: +-40 degrees
Max. helix angle: +/140 deg
Central hole of the grinding wheel: 203 mm
Thread inclination
-with single profile grinding wheel: 0,25 – 60 mm
-with multi profile grinding wheel: 1 – 2 mm
Grinding wheel diameter: 360-500 mm
Grinding wheel width: 8- 50 mm
Min/max grinding wheel feed: 0.004-0.4 mm
Weight: 7000 kg
