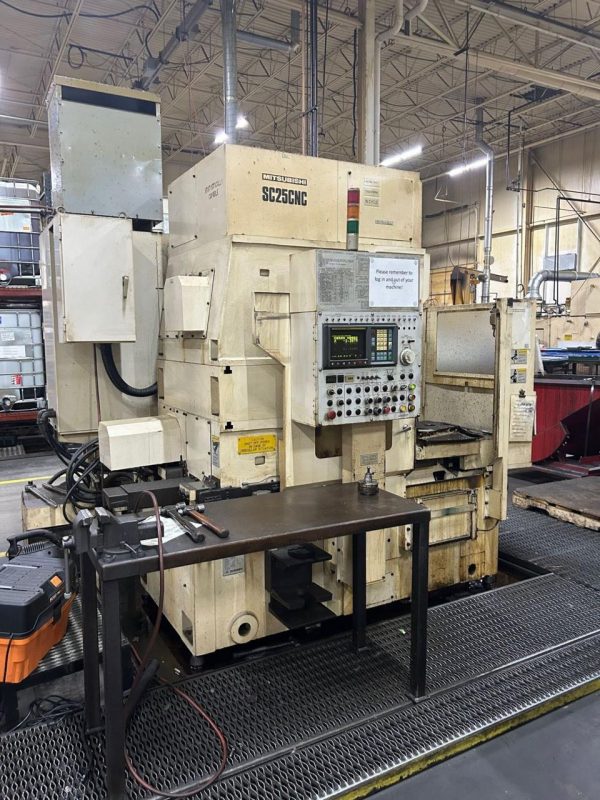

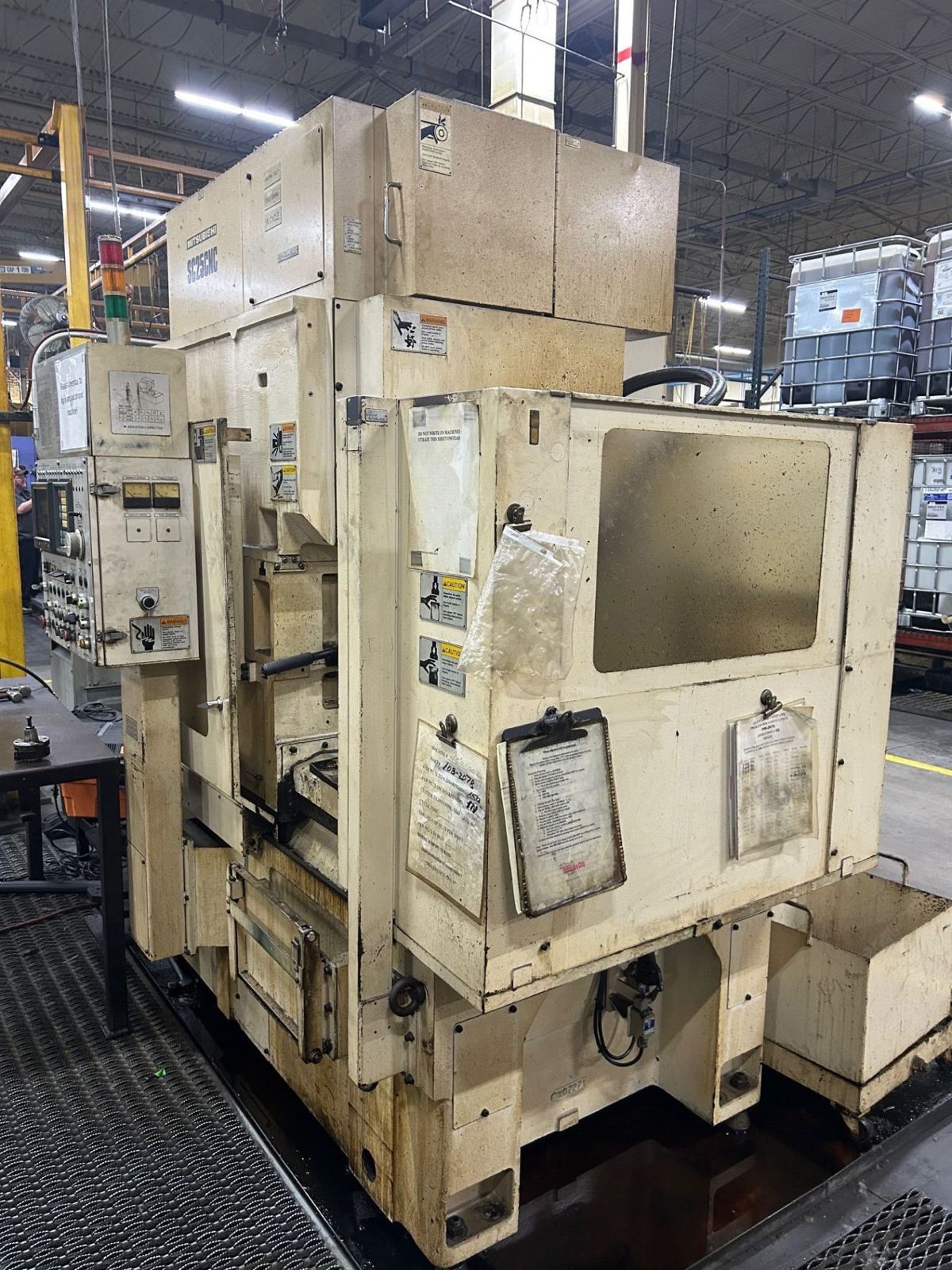

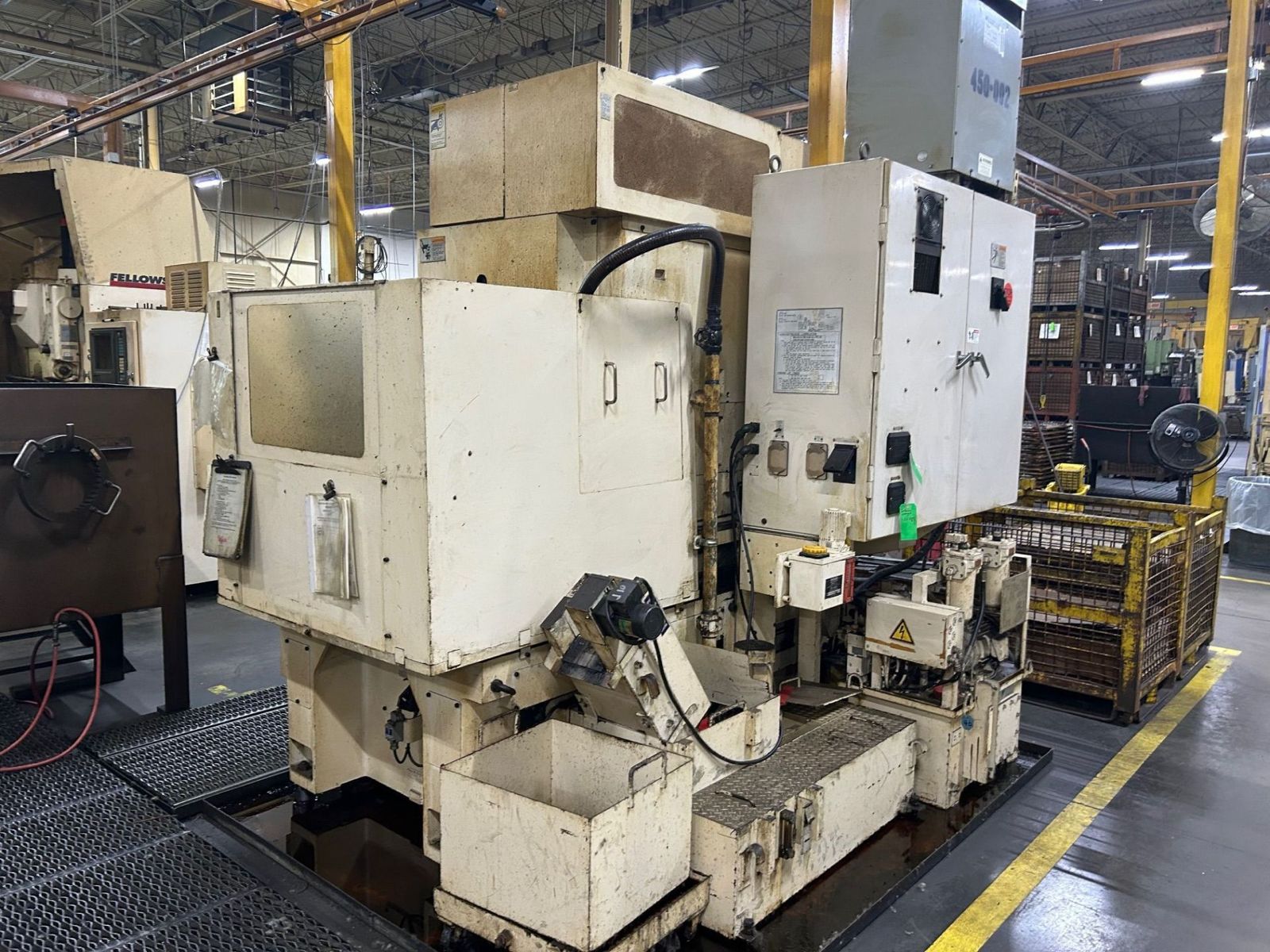

Mitsubishi SC 25 CNC Gear Shaper
CNC Gear Shaper
Specification:
Maximum Workpiece Diameter: 10″
Maximum Internal Gear Diameter: 4.7″
Cutter Spindle Diameter: 3.54″
Maximum Workpiece Size: 9.85″
Maximum Stroke Width: 2.75″
Table Diameter: 10.24″
Maximum Part Module: 6
Maximum Diametral Pitch: 4.23″
Maximum Spindle Stroke Speed: 1,800/min
Main Motor: 10 HP
Machine Dimensions: 107″ x 100″ x 108″
Machine Weight, Approximate: 17,000 lbs
