WMW SA6/2 x 2000 CNC Cylindrical Grinder
Enquiry
Description
Description

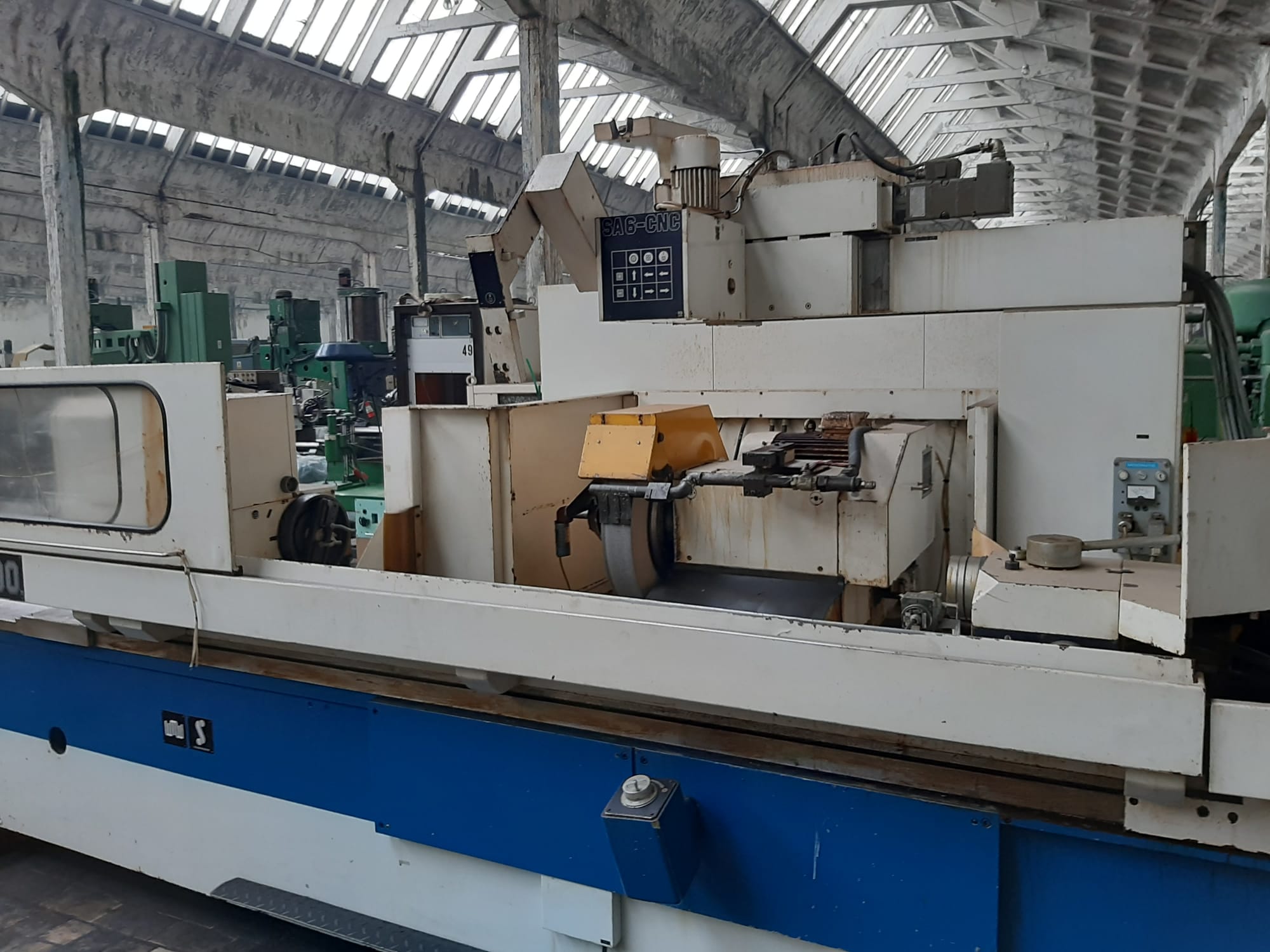

WMW SA6/2 x 2000 Cylindrical Grinder
CNC Cylindrical Grinder
Specification:
Max. grinding diameter: 515 mm
Center to center: 2000 mm
Center height: 260 mm
Max. grinding depth: 350 mm
Max. grindable bore: 230 mm
X-axis: 202 mm
Z-axis: 2000 mm
Grinding wheel turnable: 30 °
Speed work piece spindle head: 2-250 UpM /rpm
Max. grinding wheel dimensions: 635x125x304 mm
Tail stock taper: MK6
Hole drive capacity: 20 kW
Weight ca.: 10000 kg
