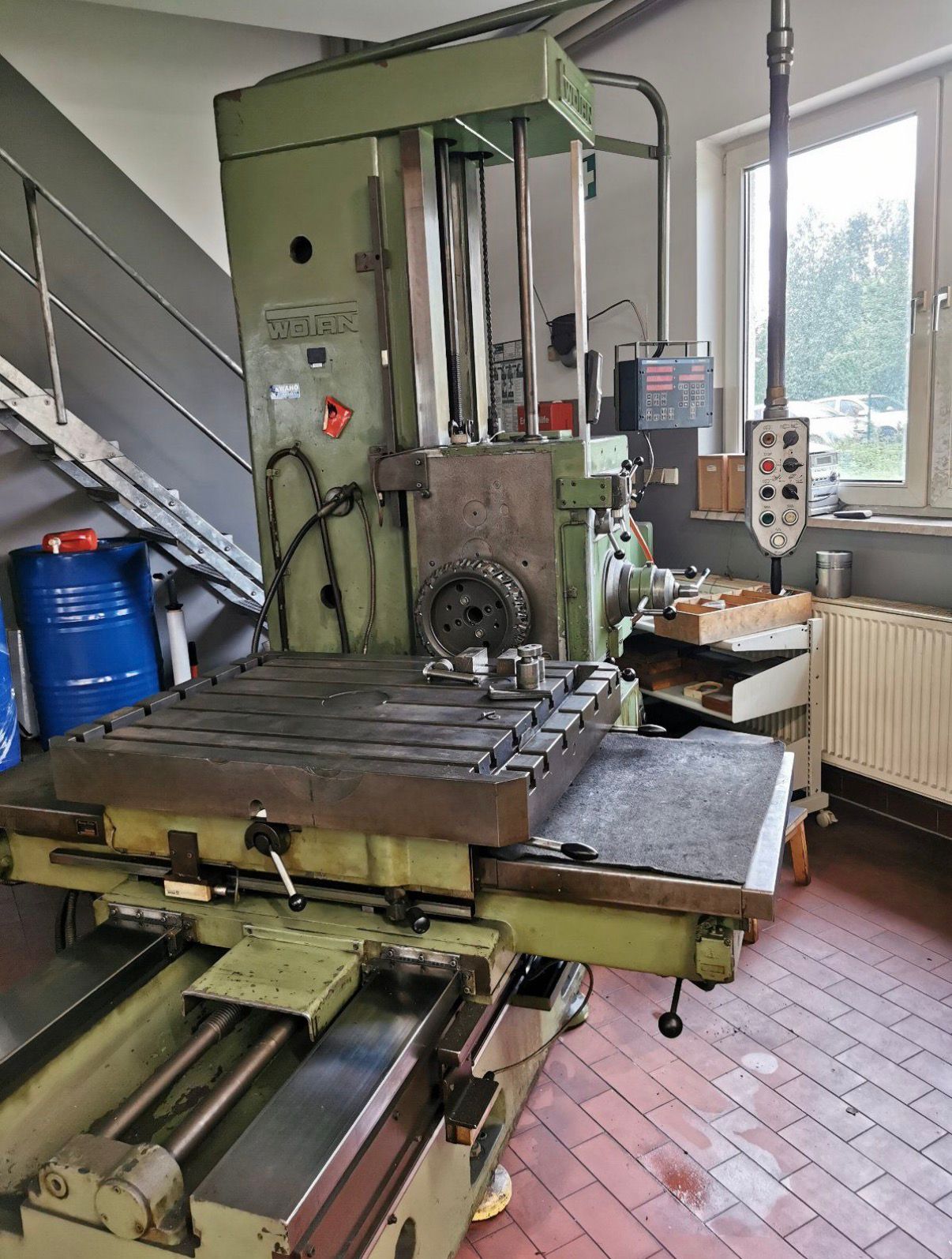

WOTAN B 75 Horizontal Boring Mill
Horizontal Boring Mill
Specification:
Spindle Diameter: 76.2 mm (3″)
Spindle: #40
Spindle Quill Travel: 596.9 mm (23.5″)
Table Size: 800.1 x 1003.3 mm (31.5″ x 39.5″)
Built in Rotary Table
Vertical Head Travel: 863.6 mm (34″)
Table Travel: 1219.2 mm (48″)
Longitudinal Saddle Travel: 800.1 mm (31.5″)
Spindle Speeds: (20) 15 to 1,200 RPM
Threading Capability: 3 to 48 TPI
Capacity: 1,814 kg (4,000 Lbs)
Right Angle Head: Yes
Pendant Control: Yes
Motor: 10 HP
